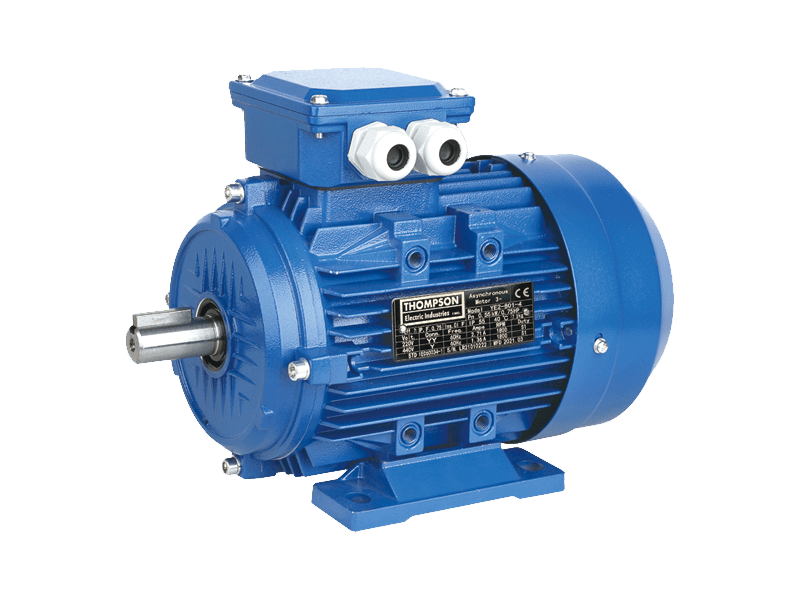

MS series three-phase asynchronous motor with aluminium housing

MS series three-phase asynchronous motor with aluminium housing

Product Details

Product overview

MS series aluminum housing three-phase asynchronous motors, with latest design in entirety, are made of selected quality materials and conform to IEC standard. MS motor have good performance, safety and reliable operation, nice appearance, and can be maintained very conveniently, while with low noise, little vibration and at the same time light weight and simple construction. These motors can be used for general drive.

Operating Conditions

Ambient temperature:-15℃≤0≤40℃

Altitude:not exceeding 1000m

Rated voltage:380V

Rated frequency:50Hz、60Hz

Protection class:IP54、IP55

Insulation class:Class B/F

Cooling method :ICO141

Duty:S1 (continuous)

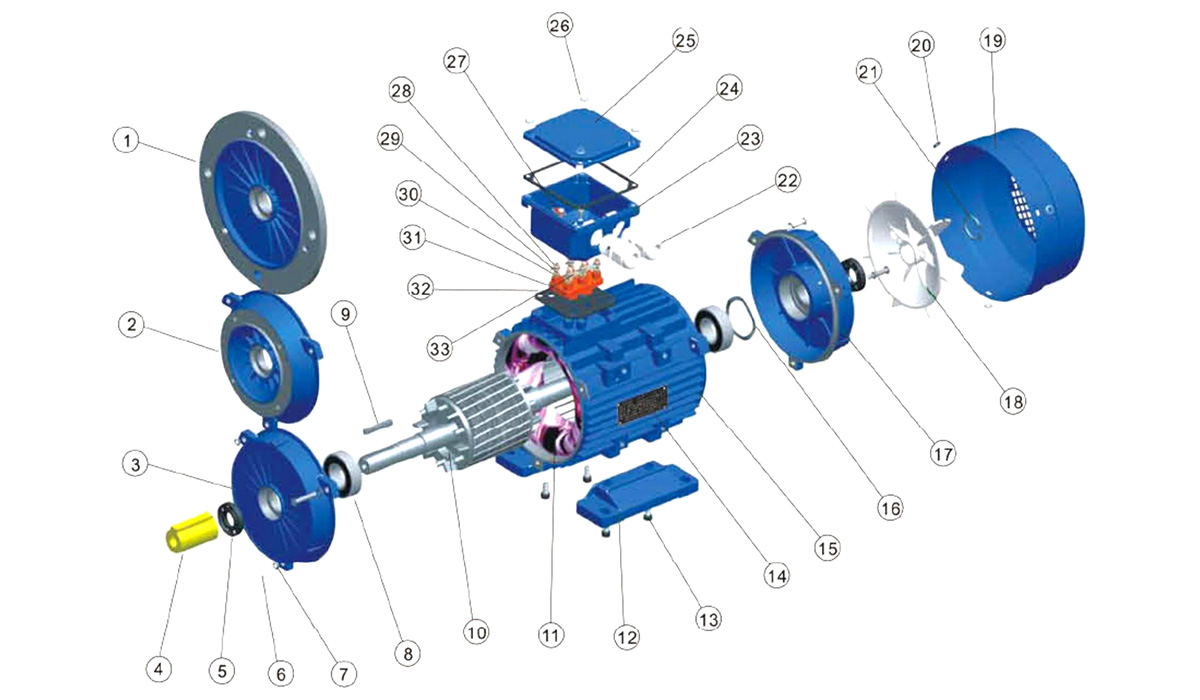

EXPLODED VIEW

1.B5 Flange

2.B14 (Front endshield)

3.Front endshield

4.Shaft cover

5.Spring washer

6.Oil seal(V Ring)

7.Bolt

8.Bearing

9.Key

10.Rotor

11.Stator

12.Pedstal

13.Pedstal bolt

14.Nameplate

15.Frame

16.Wave form

17.Rear endshield

18.Fan

19.Fan cowl

20.Fan cowl Screw

21.Fanclamp

22.PG

23.Terminal box base

24.Gasket

25.Terminal box lid

26.Screw

27.Earth mark

28.Brass washer

29.Deduction cap

30.Brass net

31.Terminal board

32.Lrather washer

33.Brass lug

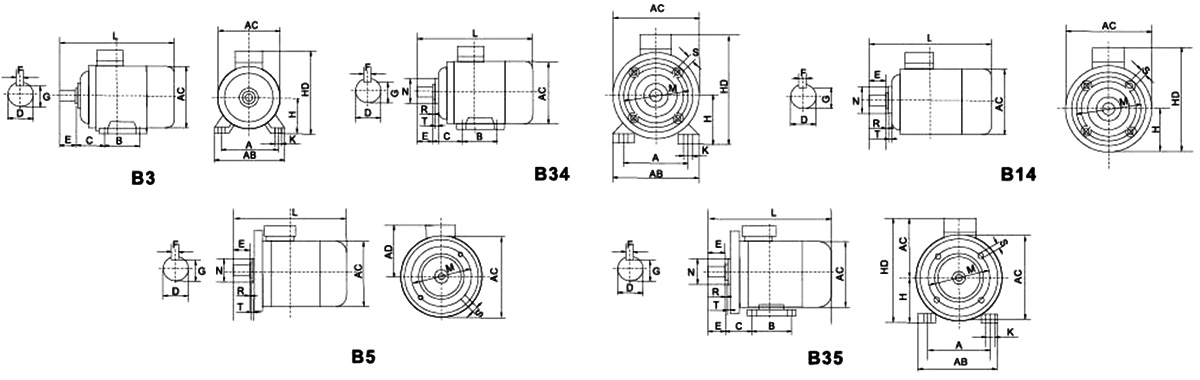

Overall & installtion diemsions

Frame No.

Installation Size

Installation Size IMB14

Installation Size IMB5

Overall Dimension

A

B

C

D

E

F

G

H

K

M

N

P

S

T

M

N

P

S

T

AB

AC

AD

HD

L

56

90

71

36

9

20

3

7.2

56

6

65

50

80

M5

2

100

80

120

8.5

3

112

108

93

149

192

63

100

80

40

11

23

4

8.5

63

7

75

60

90

M5

2.5

115

95

140

10

3

120

120

97

160

211

71

112

90

45

14

30

5

11

71

7

85

70

105

M6

2.5

130

110

160

10

3.5

135

140

104

175

240

80

125

100

50

19

40

6

15.5

80

10

100

80

120

M6

3

165

130

200

12

3.5

155

160

113

193

284

90S

140

100

56

24

50

8

20

90

10

115

95

140

M8

3

165

130

200

12

3.5

175

175

123

213

316

90L

140

125

56

24

50

8

20

90

10

115

95

140

M8

3

165

130

200

12

3.5

175

175

123

213

341

100L

160

140

63

28

60

8

24

100

12

130

110

160

M8

3.5

215

180

250

15

4

200

195

157

257

377

112M

190

140

70

28

60

8

24

112

12

130

110

160

M8

3.5

215

180

250

15

4

226

220

163

275

392

132S

216

140

89

38

80

10

33

132

12

165

130

200

M10

3.5

265

230

300

15

4

265

265

183

315

463

132M

216

178

89

38

80

10

33

132

12

165

130

200

M10

3.5

265

230

300

15

4

265

265

183

315

501

160M

254

210

108

42

110

12

37

160

15

215

180

250

M12

4

300

250

350

19

5

310

320

223

383

606

160L

254

254

108

42

110

12

37

160

15

215

180

250

M12

4

300

250

350

19

5

310

320

223

383

650



Technical date

Model

Output

Full load

75% Load

50%Load

Locked torque

Rated torque

Tstart/Tn

Locked current

Rated torque

Ist/In

Max torque

Rated torque

Tmax/Tn

kw

HP

Current

(A)

Speed

(r/min)

Eff

(%)

Power factor

Eff

(%)

Power factor

Eff

(%)

Power factor

380V 50Hz Synchronous Speed 3000r/min(2 poles)

MS56M1-2

0.09

0.12

0.30

2700

58.0

0.78

56.2

0.77

54.0

0.74

2.2

5.5

2.2

MS56M2-2

0.12

0.18

0.38

2700

60.0

0.79

58.5

0.78

56.0

0.75

2.2

5.5

2.2

MS63M1-2

0.18

0.25

0.53

2720

63.0

0.80

62.0

0.80

60.5

0.76

2.2

5.5

22

MS63M2-2

0.25

0.33

0.69

2720

65.0

0.81

64.0

0.80

62.5

0.77

2.2

5.5

2.2

MS71M1-2

0.37

0.50

0.99

2740

66.0

0-81

65.0

0.80

63.5

0.78

2.2

6.1

22

MS71M2-2

0.55

0.75

1.40

2740

71.0

0.82

70.0

0.82

68.5

0.79

2"2

6.1

2.3

MS80M1-2

0.75 1

1.83

2835

77.4

083

72.0

0.83

70.2

0.80

2.2

6.1

2.3

MS80M2-2

1.1

1.5

2.58

2835

79.6

0.84

75.1

0.83

73.0

0.80

2.2

7.0

2.3

MS90S-2

1.5

2

3.43

2845

81.3

0.84

77.0

0.85

70.0

0.81

2.2

7.0

2.3

MS90L-2

2.2

3

4.85

2845

83.2

0.85

80.0

0.85

78.0

0.84

2.2

7.0

2.3

MS100L-2

3.0

4

6.31

2875

84.6

0.87

81.0

0.86

79.3

0.86

2.2

7.0

2.3

MS112M-2

4.0

5.5

8.10

2895

85.8

0.88

83.5

0.87

81.0

0.84

2.2

7.5

2.3

MS132S1-2

5.5

7.5

11.0

2905

87.0

0.88

84.3

0.89

83.0

0.84

2.2

7.5

2.3

MS132S2-2

7.5

10

14.9

2905

88.1

0.88

85.9

0.87

83.7

0.84

2.2

7.5

2.3

MS160M1-2

11

15

21.3

2935

89.4

0.89

86.8

0.89

84.1

0.84

2.2

7.5

2.3

MS160M2-2

15

20

28.8

2935

90.3

0.89

88.0

0.89

86.4

0.85

2.2

7.5

2.3

MS160L-2

18.5

25

34.7

2935

90.9

0.90

89.0

0.88

86.8

0.86

2.2

7.5

2.3

380V 50Hz Synchronous Speed 1500r/min(4 poles)

MS56M1-4

0.06

0.08

0.26

1300

53.0

0.70

51.8

0.65

50.0

0.53

2.1

5.2

2.2

MS56M2-4

0.09

0.12

0.35

1300

55.0

0.71

53.8

0.67

52.0

0.55

2.1

5.2

2.2

MS63M1-4

0.12

0.18

0.42

1310

57.0

0.72

56.1

0.69

53.9

0.57

2.1

5.2

2.2

MS63M2-4

0.18

0.25

0.62

1310

60.0

0.73

58.5

0.70

56.7

0.59

2.1

5.2

2.2

MS71M1-4

0.25

0.33

0.79

1330

65.0

0.74

62.4

0.73

59.3

0.59

2.1

5.2

2.2

MS71M2-4

0.37

0.50

1.12

1330

67.0

0.75

65.3

0.74

60.8

0.63

2.1

5.2

2.2

MS80M1-4

0.55

0.75

1.57

1395

71.0

0.75

69.2

0.74

67.2

0.64

2.4

5.2

2.3

MS80M2-4

0.75

1.0

2.03

1395

79.6

0.76

71.7

0.75

69.8

0.67

2.3

6.0

2.3

MS90S-4

1.1

1.5

2.89

1405

81.4

0.77

73.1

0.75

70.8

0.67

2.3

6.0

2.3

MS90L-4

1.5

2

3.70

1405

82.8

0.79

76.1

0.76

73.7

0.69

2.3

6.0

2.3

MS100L1-4

2.2

3

5.16

1435

84.3

0.81

78.0

0.79

75.5

0.69

2.3

7.0

2.3

MS100L2-4

3.0

4

6.78

1435

85.5

0.82

79.9

0.78

77.5

0.70

2.3

7.0

2.3

MS112M-4

4.0

5.5

8.80

1445

86.6

0.82

81.9

0.79

79.6

0.70

2.3

7.0

2.3

MS132S-4

5.5

7.5

11.7

1445

87.7

0.83

82.8

0.81

80.4

0.73

2.3

7.0

2.3

MS132M-4

7.5

10

15.6

1445

88.7

0.84

84.8

0.82

82.6

0.74

2.3

7.0

2.3

MS160M-4

11

15

22.3

1465

89.8

0.84

85.8

0.83

83.8

0.75

2.2

7.0

2.3

MS160L-4

15

20

30.1

1465

90.6

0.85

90.0

0.83

88.5

0.75

2.2

7.5

2.3

380V 50Hz Synchronous Speed 1000r/min(6poles)

MS71M1-6

0.18

0.25

0.74

850

56.0

0.66

54.6

0.66

53.0

0.65

1.9

4.0

2.0

MS71M2-6

0.25

0.33

0.95

850

59.0

0.68

57.5

0.68

56.1

0.62

1.9

4.0

2.0

MS80M1-6

0.37

0.50

1.30

895

62.0

0.70

60.5

0.69

59.1

0.64

1.9

4.7

2.0

MS80M2-6

0.55

0.75

1.79

895

65.0

0.72

63.3

0.71

60.1

0.64

1.9

4.7

2.1

MS90S-6

0.75

1

2.29

915

75.9

0.72

67.3

0.72

66.3

0.65

2.0

5.5

21

MS90L-6

1.1

1.5

3.18

915

78.1

0,73

70.2

0.72

38.0

0.66

2.0

5.5

2.2

MS100L-6

1.5

2

3.94

945

79.8

0.75

74.0

0.75

71.0

0.68

2.0

5.5

2.1

MS112M-6

2.2

3

5.60

945

81.8

0.73

77.1

0.77

75.1

0.69

2.0

6.5

2.1

MS132S-6

3.0

4

7.40

965

83.3

0.76

789

0.77

76.1

0.69

2.1

6.5

2.1

MS132M1-6

4.0

5.5

9.80

965

84.6

0.76

80.0

0.76

77.5

0.70

2.1

6.5

2.1

MS132M2-6

5.5

7.5

12.9

965

86.0

0.77

82.1

0.77

79.4

0.70

2.1

6.5

2.1

MS160M-6

7.5

10

17.0

975

87.2

0.77

83.4

0.77

82.4

0.70

2.0

6.5

2.1

MS160L-6

11

15

24.2

975

88.7

0.78

86.6

0.78

84.8

0.72

2.0

6.5

2.1

380V 50Hz Synchronous Speed 750r/min(8poles)

MS80M1-8

0.18

0.25

0.88

630

51.0

0.61

47.9

0.52

44.6

0.54

1.8

4,0

1.9

MS80M2-8

0.25

0.33

1.15

640

54.0

0.61

48.9

0.54

45.3

0.55

1.8

4.0

1.9

MS90S-8

0.37

0.50

1.49

660

62.0

0.61

55.6

0.57

50.7

0.56

1.8

4.0

1.9

MS90L-8

0.55

0.75

2.18

660

63.0

0.61

55.9

0.58

50.9

0.59

1.8

4.0

2.0

MS100L1-8

0.75

1

2.17

690

71.0

0.67

60.9

0.65

59.7

0.56

1.8

4.0

2.0

MS100L2-8

1.1

1.5

2.39

690

73.0

0.69

72.0

0.61

59.8

0.57

1.8

5.0

2.0

MS112M-8

1.5

2

4.50

680

75.0

0.69

74.2

0.64

59.8

0.58

1.8

5.0

2.0

MS132S-8

2.2

3

6.00

710

78.0

0.71

77.2

0.61

60.1

0.58

1.8

6.0

2.0

MS132M-8

3.0

4

7.90

710

79.0

0.73

78.2

0.62

60.0

0.59

1.8

6.0

2.0

MS160M1-8

4.0

5.5

10.3

720

81.0

0.73

80.2

0.63

61.0

0.58

1.9

6.0

2.0

MS160M2-8

5.5

7.5

13.6

720

83.0

0.74

81.2

0.61

62.0

0.59

2.0

6.0

2.0

MS160L-8

7.5

10

17.8

720

85.5

0.75

84.5

0.63

65.9

0.59

2.0

6.0

2.0

Zhejiang Qizhi Motor Co., Ltd.

ZHEJIANG QIZHI MOTOR CO., LTD. is a professional production of various kinds of small and medium-sized modern enterprise, the main products include ME2 series Grundfos high-efficiency aluminum motor, MS series three-phase asynchronous motor with aluminium housing, IE1 series three-phase asynchronous motor, IE2 series three-phase asynchronous motor, IE3 series super efficient three-phase asynchronous motor, YD series pole-changing multi-speed three phase asynchronous electric motor, YDT series three-phase consequent-poles asynchronous motor, YCT series electromagnetic speedregulating motor, MS series three-phase asynchronous motor with aluminium housing, YVF2 series three-phase frequency controlled asynchronous motor, YVF2 series of frequency conversion aluminum shell speed three-phase asynchronous motor, YEJ series electromagnetic braking three-phase asynchronous motor, YC/YCL series heavy-duty single-phase capacitors start induction motor, MLYL seriessingle-phase dual-capacitor induction motor, YYB Series pump for three-phase asynchronous motor, IRG/SW Single stage single pipette centrifugal pump, CDLICDLF stainless steel vertical multistage pump, etc. OEM MS series three-phase asynchronous motor with aluminium housing Factory

ZHEJIANG QIZHI MOTOR CO., LTD. depending on the talent for the enterprise development, with strong technology research and development team, has the industry's most advanced automated nc production equipment, advanced technology and equipment, usingadvanced design software for product design, perfect modern management system, strictly in accordance with "ISO-9001"national quality management system certification, production to make the success rate of new product development speed and improve, for the same industry leading level. As Custom MS series three-phase asynchronous motor with aluminium housing Suppliers, the company has advanced motor testing equipment, to guarantee product quality, won the domestic andforeign customers a wide range of trust and praise, the company through the Chinese CCC certification and CQC certification, ISO-
9001 international quality system certification, CE certification, SGS certification (ROHS), and obtained the national electrical products export quality license, with our continuously innovation in the face of the market; The products sell well all over the country and exported to southeast Asia, Germany, Italy, Poland, Britain, France, the Middle East, South America, Africa, Asia, etc. More than 80 countries and regions. In domestic widely used in air compressor, washing machine, water pump, fan, mechanical industry, reducer, such as the host.

We would like to more higher quality product, more lower preferential price, complete thoughtul pre-sale, sale, after-sale service, cooperate with friends from all walks of life, hand in hand advance together, altogether will create the glorious future.

  • 1996

    Founded in

  • 10000

    company area

  • 200+

    Employees

  • 45+

    Exported countries

Zhejiang Qizhi Motor Co., Ltd.

Plant equipment
