EspañolGost Standard Three Phase Asynchronous Motor Custom
Home / Products / Three-phase Asynchronous Motor / Gost Motor / Gost Standard Three Phase Asynchronous Motor
This series motors amount to the sixteenth frame sizes. Among of them, the frames and end-shields of the frame size from H63 to H132 are made of cast iron or aluminium or horizon-tal distribution. So the motor entirety looks very beautiful.
The terminal boxes are made of cast iron aluminium-alloy die-casting for frame size H63 up to H280 or high strength cast iron for H315 up to H450 and located on the top or a side of the motor for offering users choose.
|

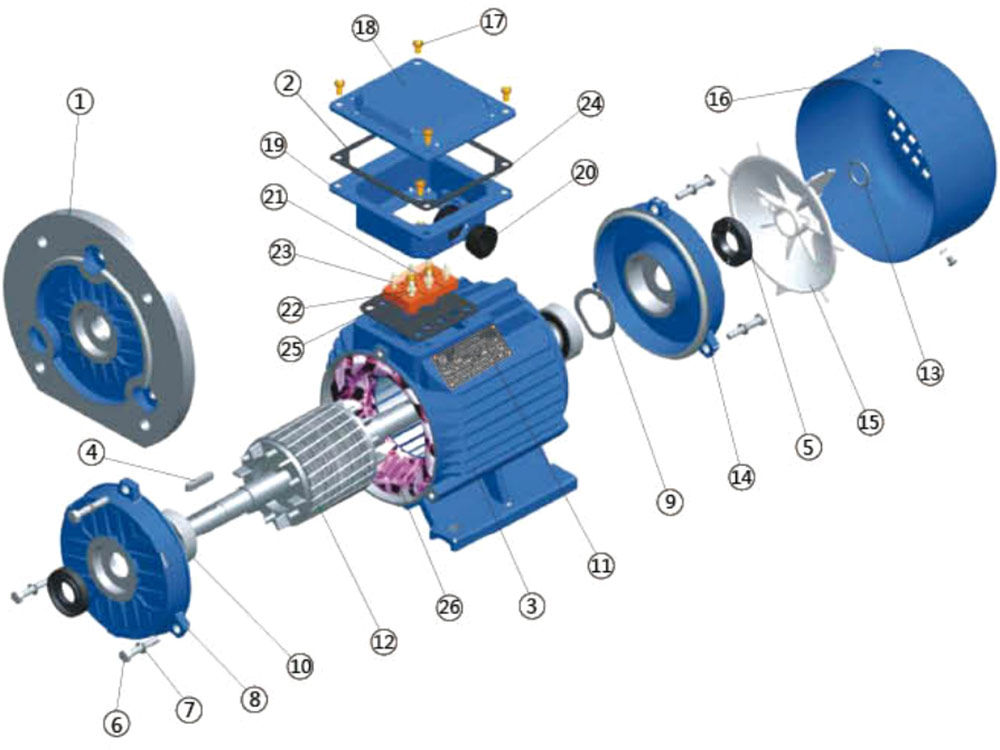

1. B5 Flange |
14. Rear end shield |
|
2. Gasket |
15. Fan |
|
3. Frame |
16. Fan cowl |
|
4. Key |
17. Screw |
|
5. (V ring)oil Seal |
18. Terminаl box lid |
|
6. Bolt |
19. Terminal box base |
|
7. Spring washer |
20. Cab leg land |
|
8. Frontenshield |
21. Terminal board |
|
9. Wavewasher |
22. Brass net |
|
10. Bearing |
23. Brassnet |
|
11. Name plate |
24. Earth mark |
|
12. Rotor |
25. Brass washer |
|
13. Circlip |
26. Stator |

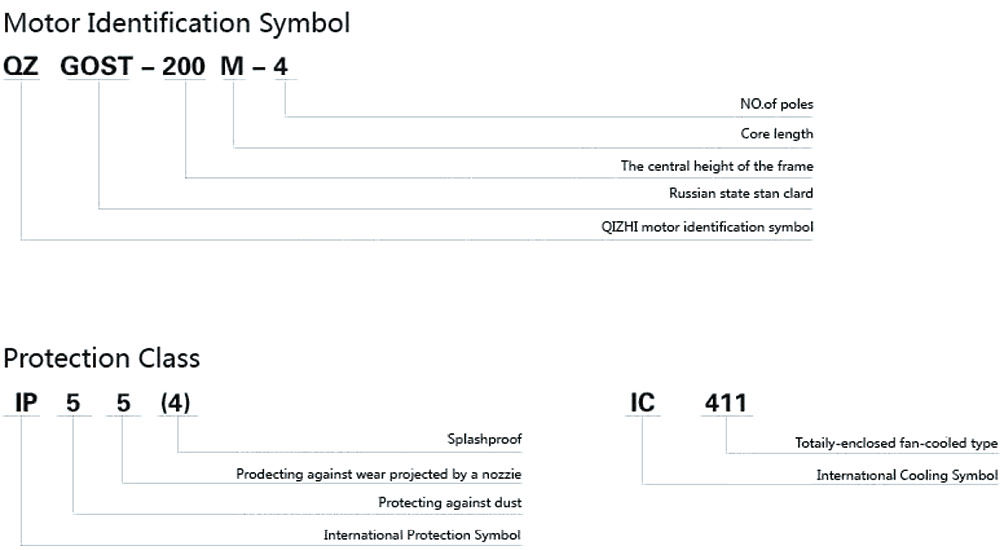

QZ·Gost Standard
BEARING SIZE
|
Frame size |
Poles |
Drive end |
Non-Drive end |
|
|
B3 |
B5 |
|||
|
71 |
2 to 6 |
6204 ZZ-C3 |
6204 ZZ-C3 |
6202 ZZ-C3 |
|
80 |
2 to 8 |
6205 ZZ-C3 |
6205 ZZ-C3 |
6205 ZZ-C3 |
|
90 |
2 to 8 |
6306 ZZ-C3 |
6306 ZZ-C3 |
6205 ZZ-C3 |
|
100 |
2 to 8 |
6306 ZZ-C3 |
6306 ZZ-C3 |
6306 ZZ-C3 |
|
112 |
2 to 8 |
6307 ZZ-C3 |
6307 ZZ-C3 |
6307 ZZ-C3 |
|
132 |
2 to 8 |
6308 ZZ-C3 |
6308 ZZ-C3 |
6308 ZZ-C3 |
|
160 |
2 |
6309-C3 |
6309-C3 |
6309-C3 |
|
160 |
4 to 8 |
6311-C3 |
6311-C3 |
6309-C3 |
|
180 |
2 |
6312-C3 |
6312-C3 |
6311-C3 |
|
180 |
4 to 8 |
6312-C3 |
6312-C3 |
6311-C3 |
|
200 |
2 |
6313-C3 |
6313-C3 |
6312-C3 |
|
200 |
4 to 8 |
6313-C3 |
6313-C3 |
6312-C3 |
|
225 |
2 |
6314-C3 |
6314-C3 |
6313-C3 |
|
225 |
4 to 8 |
6314-C3 |
6314-C3 |
6313-C3 |
|
250 |
2 |
6316-C3 |
6316-C3 |
6314-C3 |
|
250 |
4 to 8 |
6316-C3 |
6316-C3 |
6314-C3 |
|
280 |
2 |
6317-C3 |
6317-C3 |
6314-C3 |
|
280 |
4 to 8 |
6317-C3 |
6317-C3 |
6317-C3 |
|
315 |
2 |
6317-C3 |
6317-C3 |
6317-C3 |
|
315 |
4 to 10 |
NU6319-C3 |
NU6319-C3 |
6319-C3 |
|
355 |
2 |
6319-C3 |
6319-C3 |
6319-C3 |
|
355 |
4 to 10 |
NU322-C3 |
NU322-C3 |
6322-C3 |
TECHNICAL DATA
SPEED 3000RPM2-POLE 50Hz
|
Type |
Output |
Speed |
Rated curent A |
Effciency η%100% |
Pover factoc cosΦ100% |
Ts Tn |
Tmax Tn |
IS IN |
Moment() kgm² |
Noise LPA(A) |
Weight kg |
|
|
KW |
HP |
R/min |
380V |
|||||||||
|
56A2 |
0.18 |
0.25 |
2720 |
0.53 |
65.0 |
0.80 |
2.3 |
2.3 |
5.5 |
0.00030 |
61 |
4.2 |
|
56B2 |
0.25 |
0.37 |
2720 |
0.69 |
68.0 |
0.81 |
2.3 |
2.3 |
5.5 |
0.00035 |
61 |
4.5 |
|
63A2 |
0.37 |
0.5 |
2755 |
1 |
69.0 |
0.81 |
2.2 |
2.3 |
6.1 |
0.0004 |
64 |
5.0 |
|
63B2 |
0.55 |
0.75 |
2790 |
1.4 |
74.0 |
0.82 |
2.3 |
2.3 |
6.1 |
0.0005 |
64 |
5.5 |
|
71A2 |
0.75 |
1 |
2840 |
1.77 |
75.0 |
0.83 |
2.2 |
2.3 |
6.1 |
0.0006 |
67 |
8.7 |
|
71B2 |
1.1 |
1.5 |
2840 |
2.6 |
76.2 |
0.84 |
2.2 |
2.3 |
6.9 |
0.0008 |
67 |
10.5 |
|
80A2 |
1.5 |
2 |
2850 |
3.46 |
78.5 |
0.84 |
2.2 |
2.3 |
7.0 |
0.0011 |
72 |
13 |
|
80B2 |
2.2 |
3 |
2855 |
4.85 |
81.0 |
0.85 |
2.2 |
2.3 |
7.0 |
0.0018 |
72 |
15 |
|
90L2 |
3 |
4 |
2860 |
6.34 |
82.6 |
0.87 |
2.2 |
2.3 |
7.5 |
0.0024 |
76 |
17 |
|
100S2 |
4 |
5.5 |
2880 |
8.2 |
84.2 |
0.88 |
2.2 |
2.3 |
7.5 |
0.0070 |
77 |
20.5 |
|
100L2 |
5.5 |
7.5 |
2900 |
11.1 |
85.7 |
0.88 |
2.2 |
2.3 |
7.5 |
0.0080 |
80 |
28 |
|
112M2 |
7.5 |
10 |
2895 |
14.9 |
87.0 |
0.88 |
2.2 |
2.3 |
7.5 |
0.0185 |
80 |
49 |
|
132M2 |
11 |
15 |
2900 |
21.2 |
88.4 |
0.89 |
2.2 |
2.3 |
7.5 |
0.0227 |
86 |
54 |
|
160S2 |
15 |
20 |
2930 |
28.6 |
89.4 |
0.89 |
2.2 |
2.3 |
7.5 |
0.0500 |
86 |
116 |
|
160M2 |
18.5 |
25 |
2930 |
34.7 |
90.0 |
0.90 |
2.0 |
2.3 |
7.5 |
0.0550 |
86 |
130 |
|
180S2 |
22 |
30 |
2940 |
41.0 |
90.5 |
0.90 |
2.0 |
2.3 |
7.5 |
0.0620 |
89 |
150 |
|
180M2 |
30 |
40 |
2950 |
55.4 |
91.4 |
0.90 |
2.0 |
2.3 |
7.5 |
0.0700 |
92 |
170 |
|
200M2 |
37 |
50 |
2950 |
67.9 |
92.0 |
0.88 |
2.0 |
2.3 |
7.5 |
0.1400 |
92 |
230 |
|
200L2 |
45 |
60 |
2960 |
82.1 |
92.5 |
0.90 |
2.0 |
2.3 |
7.5 |
0.1600 |
92 |
255 |
|
225M2 |
55 |
75 |
2970 |
100 |
93.0 |
0.90 |
2.0 |
2.3 |
7.5 |
0.2000 |
93 |
320 |
|
250S2 |
75 |
100 |
2975 |
135 |
93.6 |
0.90 |
2.0 |
2.3 |
7.0 |
0.3500 |
94 |
450 |
|
250M2 |
90 |
125 |
2975 |
160 |
93.9 |
0.91 |
2.0 |
2.3 |
7.1 |
0.4000 |
96 |
530 |
|
280S2 |
110 |
150 |
2975 |
195 |
94.0 |
0.91 |
1.8 |
2.2 |
7.1 |
0.6000 |
96 |
650 |
|
280M2 |
132 |
180 |
2975 |
233 |
94.5 |
0.91 |
1.8 |
2.2 |
7.1 |
0.7000 |
96 |
700 |
|
315S2 |
160 |
220 |
2975 |
279 |
94.6 |
0.92 |
1.8 |
2.2 |
7.1 |
2.8200 |
99 |
1170 |
|
315M2 |
200 |
270 |
2975 |
348 |
94.8 |
0.92 |
1.8 |
2.2 |
7.1 |
3.6600 |
99 |
1460 |
|
355S2 |
250 |
340 |
2980 |
433 |
95.2 |
0.92 |
1.8 |
2.2 |
7.1 |
3.0000 |
103 |
1900 |
|
355M2 |
315 |
430 |
2980 |
545 |
95.4 |
0.92 |
1.8 |
2.2 |
7.1 |
3.5000 |
103 |
2300 |
TECHNICAL DATA
SPEED 1500RPM4-POLE 50Hz
|
Type |
Output |
Speed R/min |
Rated curent A 380V |
Efficiency η%100% |
Power factocr cosφ100% |
Ts Tn |
Tmax Tn |
IS IN |
Moment(J) kgm² |
Noise LPA(A) |
Weight kg |
|
|
KW |
HP |
|||||||||||
|
56A4 |
0.12 |
0.16 |
1310 |
0.44 |
57.0 |
0.72 |
2.2 |
2.1 |
4.4 |
0.0005 |
52 |
4.2 |
|
56B4 |
0.18 |
0.25 |
1310 |
0.69 |
58.0 |
0.68 |
2.2 |
2.1 |
4.4 |
0.0006 |
52 |
4.5 |
|
63A4 |
0.25 |
0.34 |
1340 |
0.79 |
65.0 |
0.74 |
2.2 |
2.1 |
5.2 |
0.0008 |
55 |
5.0 |
|
63B4 |
0.37 |
0.5 |
1340 |
1.12 |
67.0 |
0.75 |
2.2 |
2.1 |
5.2 |
0.0009 |
55 |
5.5 |
|
71A4 |
0.55 |
0.75 |
1390 |
1.57 |
71.0 |
0.75 |
2.4 |
2.3 |
5.2 |
0.0010 |
58 |
8.4 |
|
71B4 |
0.75 |
1 |
1390 |
2.05 |
73.0 |
0.76 |
2.3 |
2.3 |
6.0 |
0.0015 |
58 |
10 |
|
80A4 |
1.1 |
1.5 |
1390 |
2.85 |
76.2 |
0.77 |
2.3 |
2.3 |
6.0 |
0.0028 |
61 |
14 |
|
80B4 |
1.5 |
2 |
1400 |
3.72 |
78.5 |
0.78 |
2.3 |
2.3 |
6.0 |
0.0034 |
61 |
16 |
|
90L4 |
2.2 |
3 |
1410 |
5.1 |
80.0 |
0.81 |
2.3 |
2.3 |
7.0 |
0.0056 |
64 |
17 |
|
100S4 |
3 |
4 |
1410 |
6.8 |
82.6 |
0.82 |
2.3 |
2.3 |
7.0 |
0.0100 |
64 |
21 |
|
100L4 |
4 |
5.5 |
1435 |
8.8 |
84.2 |
0.82 |
2.3 |
2.3 |
7.0 |
0.0130 |
65 |
37 |
|
112M4 |
5.5 |
7.5 |
1440 |
11.7 |
85.7 |
0.83 |
2.3 |
2.3 |
7.0 |
0.0236 |
71 |
45 |
|
132S4 |
7.5 |
10 |
1450 |
15.6 |
87.0 |
0.84 |
2.3 |
2.3 |
7.0 |
0.0227 |
71 |
52 |
|
132M4 |
11 |
15 |
1460 |
22.5 |
88.4 |
0.84 |
2.2 |
2.3 |
7.0 |
0.0349 |
75 |
60 |
|
160S4 |
15 |
20 |
1460 |
30.0 |
89.4 |
0.85 |
2.2 |
2.3 |
7.5 |
0.0600 |
75 |
125 |
|
160M4 |
18.5 |
25 |
1470 |
36.3 |
90.0 |
0.86 |
2.2 |
2.3 |
7.5 |
0.0650 |
76 |
142 |
|
180S4 |
22 |
30 |
1470 |
43.2 |
90.5 |
0.86 |
2.2 |
2.3 |
7.5 |
0.0700 |
76 |
160 |
|
180M4 |
30 |
40 |
1470 |
57.6 |
91.4 |
0.86 |
2.2 |
2.3 |
7.2 |
0.0800 |
76 |
190 |
|
200M4 |
37 |
50 |
1475 |
70.2 |
92.0 |
0.87 |
2.2 |
2.3 |
7.2 |
0.1500 |
79 |
230 |
|
200L4 |
45 |
60 |
1475 |
84.9 |
92.5 |
0.87 |
2.2 |
2.3 |
6.8 |
0.1800 |
81 |
260 |
|
225M4 |
55 |
75 |
1480 |
103 |
93.0 |
0.87 |
2.2 |
2.3 |
6.8 |
0.2000 |
81 |
325 |
|
250S4 |
75 |
100 |
1480 |
138.3 |
93.6 |
0.88 |
2.2 |
2.3 |
6.9 |
0.3500 |
83 |
450 |
|
250M4 |
90 |
125 |
1480 |
165.5 |
93.9 |
0.88 |
2.2 |
2.3 |
6.9 |
0.4000 |
86 |
495 |
|
280S4 |
110 |
150 |
1480 |
201 |
94.5 |
0.88 |
2.1 |
2.2 |
6.9 |
0.6000 |
86 |
650 |
|
280M4 |
132 |
180 |
1480 |
240 |
94.8 |
0.88 |
2.1 |
2.2 |
6.9 |
0.7000 |
93 |
700 |
|
315S4 |
160 |
220 |
1480 |
288 |
94.9 |
0.89 |
2.1 |
2.2 |
6.9 |
2.7000 |
93 |
1000 |
|
315M4 |
200 |
270 |
1480 |
360 |
94.9 |
0.89 |
2.1 |
2.2 |
6.9 |
4.8200 |
97 |
1200 |
|
355S4 |
250 |
340 |
1490 |
443 |
95.2 |
0.90 |
2.1 |
2.2 |
6.9 |
6.5000 |
101 |
1700 |
|
355M4 |
315 |
430 |
1490 |
559 |
95.2 |
0.90 |
2.1 |
2.2 |
6.9 |
8.2000 |
101 |
1900 |
TECHNICAL DATA
SPEED 1000RPM6-POLE 50Hz
|
Type |
Cutput |
Speed R/min |
Rated cunet A 380V |
Efficiency η%100% |
Power factoc cosφ100% |
Ts Tn |
Tmax Tn |
IS IN |
Moment(J) kgm² |
Noise LPA(A) |
Weight kg |
|
|
KW |
HP |
|||||||||||
|
63A6 |
0.18 |
0.25 |
870 |
0.74 |
56.0 |
0.66 |
1.9 |
2.0 |
4.0 |
0.0010 |
52 |
5.0 |
|
63B6 |
0.25 |
0.37 |
870 |
0.95 |
59.0 |
0.68 |
1.9 |
2.0 |
4.0 |
0.0011 |
52 |
5.5 |
|
71A6 |
0.37 |
0.5 |
880 |
1.3 |
62.0 |
0.70 |
1.9 |
2.0 |
4.7 |
0.0015 |
54 |
8.4 |
|
71B6 |
0.55 |
0.75 |
880 |
1.8 |
65.0 |
0.72 |
1.9 |
2.1 |
4.7 |
0.0020 |
54 |
10 |
|
80A6 |
0.75 |
1 |
905 |
2.3 |
69.0 |
0.72 |
2.0 |
2.1 |
5.3 |
0.0035 |
57 |
14 |
|
80B6 |
1.1 |
1.5 |
905 |
3.2 |
72.0 |
0.73 |
2.0 |
2.1 |
5.5 |
0.0048 |
57 |
16 |
|
90L6 |
1.5 |
2 |
920 |
4.0 |
76.0 |
0.75 |
2.0 |
2.1 |
5.5 |
0.0066 |
61 |
18 |
|
100L6 |
2.2 |
3 |
935 |
5.6 |
79.0 |
0.76 |
2.0 |
2.1 |
6.5 |
0.0200 |
65 |
33.5 |
|
112MA6 |
3 |
4 |
960 |
7.4 |
81.0 |
0.76 |
2.1 |
2.1 |
6.5 |
0.0380 |
69 |
41 |
|
112MB6 |
4 |
5.5 |
960 |
9.75 |
82.0 |
0.76 |
2.1 |
2.1 |
6.5 |
0.0425 |
69 |
50 |
|
132S6 |
5.5 |
7.5 |
960 |
12.9 |
84.0 |
0.77 |
2.1 |
2.1 |
6.5 |
0.0500 |
69 |
56 |
|
132M6 |
7.5 |
10 |
970 |
17.2 |
86.0 |
0.77 |
2.0 |
2.1 |
6.5 |
0.0597 |
73 |
61 |
|
160S6 |
11 |
15 |
970 |
24.5 |
87.5 |
0.78 |
2.0 |
2.1 |
6.5 |
0.0700 |
73 |
125 |
|
160M6 |
15 |
20 |
970 |
31.6 |
89.0 |
0.81 |
2.0 |
2.1 |
7.0 |
0.0750 |
73 |
155 |
|
180M6 |
18.5 |
25 |
980 |
38.6 |
90.0 |
0.81 |
2.1 |
2.1 |
7.0 |
0.0900 |
76 |
160 |
|
200M6 |
22 |
30 |
980 |
44.7 |
90.0 |
0.83 |
2.0 |
2.1 |
7.0 |
0.2000 |
76 |
195 |
|
200L6 |
30 |
40 |
980 |
59.3 |
91.5 |
0.84 |
2.0 |
2.1 |
7.0 |
0.2500 |
76 |
225 |
|
225M6 |
37 |
50 |
980 |
71.0 |
92.0 |
0.86 |
2.1 |
2.1 |
7.0 |
0.8250 |
78 |
360 |
|
250S6 |
45 |
60 |
980 |
86.0 |
92.5 |
0.86 |
2.1 |
2.0 |
7.0 |
1.2800 |
80 |
465 |
|
250M6 |
55 |
75 |
980 |
104 |
92.8 |
0.86 |
2.1 |
2.0 |
7.0 |
1.4800 |
80 |
520 |
|
280S6 |
75 |
100 |
985 |
142 |
93.5 |
0.86 |
2.0 |
2.0 |
6.7 |
2.6300 |
85 |
690 |
|
280M6 |
90 |
125 |
985 |
169 |
93.8 |
0.86 |
2.0 |
2.0 |
6.7 |
3.3300 |
85 |
800 |
|
315S6 |
110 |
150 |
985 |
207 |
94.0 |
0.86 |
2.0 |
2.0 |
6.7 |
3.6000 |
85 |
880 |
|
315M6 |
132 |
180 |
985 |
245 |
94.2 |
0.87 |
2.0 |
2.0 |
6.7 |
6.0000 |
85 |
1050 |
|
355S6 |
160 |
220 |
990 |
292 |
94.5 |
0.88 |
1.9 |
2.0 |
6.7 |
9.5000 |
92 |
1550 |
|
355M6 |
200 |
270 |
990 |
365 |
94.5 |
0.88 |
1.9 |
2.0 |
6.7 |
10.4000 |
92 |
1600 |
|
355MB6 |
250 |
340 |
990 |
457 |
94.5 |
0.88 |
1.9 |
2.0 |
6.7 |
12.4000 |
92 |
1700 |
TECHNICAL DATA
SPEED 750RPM8-POLE 50Hz
|
Type |
Output KW HP |
Speed R/min |
Ratedauremt A 380V |
Eficency η%100% |
Power factocr cosφ100% |
Ts Tn |
Tmax Tn |
IS IN |
Moment(J) kgm² |
Noise LPA(A) |
Weight kg |
|
|
71B8 |
0.25 |
0.37 |
645 |
1.10 |
54.0 |
0.61 |
1.8 |
1.9 |
3.3 |
0.0025 |
52 |
9 |
|
80A8 |
0.37 |
0.5 |
675 |
1.49 |
62.0 |
0.61 |
1.8 |
1.9 |
4.0 |
0.0030 |
56 |
15 |
|
80B8 |
0.55 |
0.75 |
680 |
2.17 |
63.0 |
0.61 |
1.8 |
2.0 |
4.0 |
0.0038 |
56 |
18 |
|
90LA8 |
0.75 |
1 |
680 |
2.43 |
70.0 |
0.67 |
1.8 |
2.0 |
4.0 |
0.0063 |
59 |
23 |
|
90LB8 |
1.1 |
1.5 |
680 |
3.36 |
72.0 |
0.69 |
1.8 |
2.0 |
5.0 |
0.0090 |
59 |
28 |
|
100L8 |
1.5 |
2 |
690 |
4.40 |
74.0 |
0.70 |
1.8 |
2.0 |
5.0 |
0.0123 |
61 |
33.5 |
|
112MA8 |
2.2 |
3 |
710 |
6.0 |
79.0 |
0.71 |
1.8 |
2.0 |
6.0 |
0.0221 |
64 |
46 |
|
112MB8 |
3 |
4 |
710 |
7.80 |
80.0 |
0.73 |
1.8 |
2.0 |
6.0 |
0.0288 |
64 |
53 |
|
132S8 |
4 |
5.5 |
720 |
10.3 |
81.0 |
0.73 |
1.9 |
2.0 |
6.0 |
0.0690 |
68 |
70 |
|
132M8 |
5.5 |
7.5 |
720 |
13.6 |
83.0 |
0.74 |
1.9 |
2.0 |
6.0 |
0.0935 |
68 |
86 |
|
160S8 |
7.5 |
10 |
720 |
17.8 |
85.5 |
0.75 |
1.9 |
2.0 |
6.0 |
0.0800 |
68 |
125 |
|
160M8 |
11 |
15 |
730 |
25.5 |
87.5 |
0.75 |
2.0 |
2.0 |
6.5 |
0.0850 |
70 |
150 |
|
180M8 |
15 |
20 |
730 |
34.1 |
88.0 |
0.76 |
2.0 |
2.0 |
6.6 |
0.1000 |
73 |
172 |
|
200M8 |
18.5 |
25 |
730 |
41.1 |
90.0 |
0.76 |
1.9 |
2.0 |
6.6 |
0.3000 |
73 |
210 |
|
200L8 |
22 |
30 |
730 |
48.9 |
90.5 |
0.78 |
1.9 |
2.0 |
6.6 |
0.3500 |
73 |
225 |
|
225M8 |
30 |
40 |
735 |
63.0 |
91.0 |
0.79 |
1.9 |
2.0 |
6.5 |
0.8250 |
75 |
360 |
|
250S8 |
37 |
50 |
740 |
78.0 |
91.5 |
0.79 |
1.9 |
2.0 |
6.6 |
1.3500 |
76 |
465 |
|
250M8 |
45 |
60 |
740 |
94.0 |
92.0 |
0.79 |
1.8 |
2.0 |
6.6 |
1.5500 |
76 |
520 |
|
280S8 |
55 |
75 |
740 |
111 |
92.8 |
0.81 |
1.8 |
2.0 |
6.6 |
2.6300 |
82 |
690 |
|
280M8 |
75 |
100 |
740 |
150 |
93.5 |
0.81 |
1.8 |
2.0 |
6.2 |
3.3300 |
82 |
800 |
|
315S8 |
90 |
125 |
740 |
178 |
93.8 |
0.82 |
1.8 |
2.0 |
6.4 |
3.6000 |
82 |
8800 |
|
315M8 |
110 |
150 |
740 |
217 |
94.0 |
0.82 |
1.8 |
2.0 |
6.4 |
6.0000 |
82 |
1050 |
|
355S8 |
132 |
180 |
740 |
261 |
93.7 |
0.82 |
1.8 |
2.0 |
6.4 |
7.9000 |
90 |
2000 |
|
355M8 |
160 |
220 |
740 |
315 |
94.2 |
0.82 |
1.8 |
2.0 |
6.4 |
10.3000 |
90 |
2150 |
|
355MB8 |
200 |
270 |
740 |
387 |
94.5 |
0.83 |
1.8 |
2.0 |
6.4 |
12.3000 |
90 |
2250 |
MOUNTING AND OVERALL DIMENSIONS
LMG-56-355-B3
|
Type |
Poles |
Overal Dimensions |
Mounting Dimensions |
|||||||||||||||
|
l30 |
h31 |
d30 |
b10 |
b11 |
110 |
111 |
131 |
D1 |
|
l1 |
b1 |
d2 |
h1 |
h |
h10 |
d10 |
||
|
L |
HD |
AC |
A |
AB |
B |
BB |
C |
D |
DH |
E |
F |
G |
GD |
H |
HA |
k |
||
|
56 |
2.4 |
216 |
165 |
120 |
90 |
113 |
71 |
88 |
36 |
11 |
M4x12 |
23 |
4 |
8.5 |
4 |
56 |
7 |
5.8x8.3 |
|
63 |
2.4.6 |
250 |
179 |
136 |
100 |
124 |
80 |
98 |
40 |
14 |
M5x12 |
30 |
5 |
11 |
5 |
63 |
8 |
5.8x8.3 |
|
71 |
2.4.6.8 |
276 |
207 |
155 |
112 |
144 |
90 |
120 |
45 |
19 |
M6x16 |
40 |
6 |
15.5 |
6 |
71 |
8 |
7 |
|
80A |
2.4.6.8 |
314 |
233 |
176 |
125 |
160 |
100 |
130 |
50 |
22 |
M6x16 |
50 |
6 |
18.5 |
6 |
80 |
10 |
10 |
|
80B |
2.4.6.8 |
339 |
233 |
176 |
125 |
160 |
100 |
130 |
50 |
22 |
M6x16 |
50 |
6 |
18.5 |
6 |
80 |
10 |
10 |
|
90L |
2.4.6.8 |
372 |
250 |
184 |
140 |
176 |
125 |
155 |
56 |
24 |
M8x19 |
50 |
8 |
20 |
7 |
90 |
12 |
10 |
|
100S |
2.4.6.8 |
381 |
270 |
206 |
160 |
200 |
112 |
148 |
63 |
28 |
M10x22 |
60 |
8 |
24 |
7 |
100 |
14 |
12 |
|
100L |
2.4.6.8 |
409 |
270 |
206 |
160 |
200 |
140 |
176 |
63 |
28 |
M10x22 |
60 |
8 |
24 |
7 |
100 |
14 |
12 |
|
112M |
2.4.6.8 |
453 |
308 |
240 |
190 |
226 |
140 |
180 |
70 |
32 |
M10x22 |
80 |
10 |
27 |
8 |
112 |
15 |
12 |
|
132S |
4.6.8 |
488 |
348 |
283 |
216 |
268 |
140 |
200 |
89 |
38 |
M12x28 |
80 |
10 |
33 |
8 |
132 |
18 |
12 |
|
132M |
2.4.6.8 |
528 |
348 |
283 |
216 |
268 |
178 |
238 |
89 |
38 |
M¹2x28 |
80 |
10 |
33 |
8 |
132 |
18 |
12 |
|
160S |
2 4.6.8 |
629 629 |
413 413 |
314 314 |
254 254 |
320 320 |
178 178 |
236 236 |
108 108 |
42 48 |
M16x36 M16x36 |
110 110 |
12 14 |
37 42.5 |
8 9 |
160 160 |
20 20 |
15 15 |
|
160M |
2 4.6.8 |
673 673 |
413 413 |
314 314 |
254 254 |
320 320 |
210 210 |
268 268 |
108 108 |
42 48 |
M16x36 M16x36 |
110 110 |
12 14 |
37 42.5 |
8 9 |
160 160 |
20 20 |
15 15 |
|
180S |
2 4 |
699 699 |
448 448 |
355 355 |
279 279 |
349 349 |
203 203 |
249 249 |
121 121 |
48 55 |
M16x36 M20x42 |
110 110 |
14 16 |
42.5 49 |
9 10 |
180 180 |
22 22 |
15 15 |
|
180M |
2 4.6.8 |
764 764 |
448 448 |
355 355 |
279 279 |
349 349 |
241 241 |
287 287 |
121 121 |
48 55 |
M16x36 M20x42 |
110 110 |
14 16 |
42.5 49 |
9 10 |
180 180 |
22 22 |
15 15 |
|
200M |
2 4.6.8 |
822 852 |
506 506 |
397 397 |
318 318 |
388 388 |
267 267 |
331 331 |
133 133 |
55 60 |
M20x42 M20x42 |
110 140 |
16 18 |
49 53 |
10 11 |
200 200 |
25 25 |
19 19 |
|
200L |
2 4.6.8 |
857 887 |
506 506 |
397 397 |
318 318 |
388 388 |
305 305 |
369 369 |
133 133 |
55 60 |
M20x42 M20x42 |
110 140 |
16 18 |
49 53 |
10 11 |
200 200 |
25 25 |
19 19 |
|
225M |
2 4.6.8 |
859 889 |
554 554 |
445 445 |
356 356 |
431 431 |
311 311 |
393 393 |
149 149 |
55 65 |
M20x42 M20x42 |
110 140 |
16 18 |
49 58 |
10 11 |
225 225 |
28 28 |
19 19 |
|
250S |
2 4.6.8.10 |
979 979 |
616 616 |
485 485 |
406 406 |
484 484 |
311 311 |
421 421 |
168 168 |
65 75 |
M20x42 M20x42 |
140 140 |
18 20 |
58 67.5 |
11 12 |
250 250 |
30 30 |
24 24 |
|
250M |
2 4.6.8.10 |
1029 1029 |
616 616 |
485 485 |
406 406 |
484 484 |
349 349 |
456 456 |
168 168 |
65 75 |
M20x42 M20x42 |
140 140 |
18 20 |
58 67.5 |
11 12 |
250 250 |
30 30 |
24 24 |
|
280S |
2 4.6.8.10 |
1113 1143 |
675 675 |
547 547 |
457 457 |
542 542 |
368 368 |
478 478 |
190 190 |
70 80 |
M20x42 M20x42 |
140 170 |
20 22 |
62.5 71 |
12 14 |
280 280 |
38 38 |
24 24 |
|
280M |
2 4.6.8.10 |
1164 1194 |
675 675 |
547 547 |
457 457 |
542 542 |
419 419 |
529 529 |
190 190 |
70 80 |
M20x42 M20x42 |
140 170 |
20 22 |
62.5 71 |
12 14 |
280 280 |
38 38 |
24 24 |
|
315S |
2 4.6.8.10 |
1263 1330 |
842 842 |
617 617 |
508 508 |
635 635 |
406 406 |
680 680 |
216 216 |
75 90 |
M20x42 M20x42 |
140 170 |
20 25 |
62.5 81 |
14 14 |
315 315 |
45 45 |
28 28 |
|
315M |
2 4.6.8.10 |
1263 1330 |
842 842 |
617 617 |
508 508 |
635 635 |
457 457 |
680 680 |
216 216 |
75 90 |
M20x42 M20x42 |
140 170 |
20 25 |
67.5 81 |
14 14 |
315 315 |
45 45 |
28 28 |
|
355S |
2 4.6.8.10 |
1516 1556 |
997 997 |
698 698 |
610 610 |
736 736 |
560 630 |
750 750 |
254 254 |
85 100 |
M24x42 M24x50 |
170 210 |
22 28 |
76 90 |
14 16 |
355 355 |
52 52 |
28 28 |
|
355M |
2 4.6.8.10 |
1516 1556 |
997 997 |
698 698 |
610 610 |
736 736 |
560 630 |
750 750 |
254 254 |
85 100 |
M24x42 M24x50 |
170 210 |
22 28 |
76 90 |
14 16 |
355 355 |
52 52 |
28 28 |
MOUNTING AND OVERALL DIMENSIONS
LMG-56-355-B35
139 (R) is the distance from the flange mounting-plane to the shaft-extension shoulder.
|
Type |
Poles |
Overal Dimensions |
Mourting Dimensions |
||||||||||||||||||||||
|
l30 |
h31 |
d30 |
d24 |
b10 |
b11 |
I10 |
I11 |
I31 |
d1 |
DH |
d1 |
d2 |
h1 |
h |
h10 |
d10 |
l20 |
l21 |
d20 |
d25 |
I20 |
d22 |
n |
||
|
L |
HD |
AC |
P |
A |
AB |
B |
BB |
C |
D |
E |
F |
G |
GD |
H |
HA |
k |
LA |
M |
N |
T |
S |
n |
|||
|
56 63 |
2.4 |
216 |
165 |
120 |
140 |
90 |
113 |
71 |
88 |
36 |
11 |
M4x12 |
23 |
4 |
8.5 |
4 |
56 |
7 |
5.8x8.3 |
10 |
115 |
95 |
3 |
10 |
4 |
|
2.4.6 |
250 |
179 |
136 |
160 |
100 |
124 |
80 |
98 |
40 |
14 |
M5x12 |
30 |
5 |
11 |
5 |
63 |
8 |
5.8x8.5 |
10 |
130 |
110 |
3.5 |
10 |
4 |
|
|
71 |
2.4.6.8 |
276 |
207 |
155 |
200 |
112 |
144 |
90 |
120 |
45 |
19 |
M6x16 |
40 |
6 |
15.5 |
6 |
71 |
8 |
7 |
12 |
165 |
130 |
3.5 |
12 |
4 |
|
80A |
2.4.6.8 |
314 |
233 |
176 |
200 |
125 |
160 |
100 |
130 |
50 |
22 |
M6x16 |
50 |
6 |
18.5 |
6 |
80 |
10 |
10 |
12 |
165 |
130 |
3.5 |
12 |
4 |
|
80B |
2.4.6.8 |
339 |
233 |
176 |
200 |
125 |
160 |
100 |
130 |
50 |
22 |
M6x16 |
50 |
6 |
18.5 |
6 |
80 |
10 |
10 |
12 |
165 |
130 |
3.5 |
12 |
4 |
|
90L |
2.4.6.8 |
372 |
250 |
184 |
250 |
140 |
176 |
125 |
155 |
56 |
24 |
M8x19 |
50 |
8 |
20 |
7 |
90 |
12 |
10 |
14 |
215 |
180 |
4 |
15 |
4 |
|
100S |
2.4.6.8 |
381 |
270 |
206 |
250 |
160 |
200 |
112 |
148 |
63 |
28 |
M10x22 |
60 |
8 |
24 |
7 |
100 |
14 |
12 |
13 |
215 |
180 |
4 |
15 |
4 |
|
100L |
2.4.6.8 |
409 |
270 |
206 |
250 |
160 |
200 |
140 |
176 |
63 |
28 |
M10x22 |
60 |
8 |
24 |
7 |
100 |
14 |
12 |
13 |
215 |
180 |
4 |
15 |
4 |
|
112M |
2.4.6.8 |
453 |
308 |
240 |
300 |
190 |
226 |
140 |
180 |
70 |
32 |
M10x22 |
80 |
10 |
27 |
8 |
112 |
15 |
12 |
14 |
265 300 |
230 250 |
4 |
15 |
4 |
|
132S |
4.6.8 |
488 |
348 |
283 |
350 |
216 |
268 |
140 |
200 |
89 |
38 |
M12x28 |
80 |
10 |
33 |
8 |
132 |
18 |
12 |
15 |
5 |
19 |
4 |
||
|
132M |
2.4.6.8 |
528 |
348 |
283 |
350 |
216 |
268 |
178 |
238 |
89 |
38 |
M12x28 |
80 |
10 |
33 |
8 |
132 |
18 |
12 |
15 |
300 |
250 |
5 |
19 |
4 |
|
160S |
2 4.6.8 |
629 629 |
413 413 |
314 314 |
350 350 |
254 254 |
320 320 |
178 178 |
236 236 |
108 108 |
42 48 |
M16x36 M16x36 |
110 110 |
12 14 |
37 42.5 |
8 9 |
160 160 |
20 20 |
15 15 |
16 16 |
300 300 |
250 250 |
5 5 |
19 19 |
4 4 |
|
160M |
2 4.6.8 |
673 673 |
413 413 |
314 314 |
350 350 |
254 254 |
320 320 |
210 210 |
268 268 |
108 108 |
42 48 |
M16x36 M16x36 |
110 110 |
12 14 |
37 42.5 |
8 9 |
160 160 |
20 20 |
15 15 |
16 16 |
300 300 |
250 250 |
5 5 |
19 19 |
4 4 |
|
180S |
2 4 |
699 699 |
448 448 |
355 355 |
400 400 |
279 279 |
349 349 |
203 203 24 241 |
249 249 |
121 121 |
48 55 |
M16x36 M20x42 |
110 110 |
14 16 |
42.5 49 |
9 10 |
180 180 |
22 22 |
15 15 |
15 15 |
350 350 |
300 300 |
5 5 |
19 19 |
4 4 |
|
180M |
2 4.6.8 |
764 764 |
448 448 |
355 355 |
400 400 |
279 279 |
349 349 |
287 287 |
121 121 |
48 55 |
M16x36 M20x42 |
110 110 |
14 16 |
42.5 49 |
9 10 |
180 180 |
22 22 |
15 15 |
15 15 |
350 350 |
300 300 |
5 5 |
19 19 |
4 4 |
|
|
200M |
2 4.6.8 |
822 852 |
506 506 |
397 397 |
450 450 |
318 318 |
388 388 |
267 267 |
331 331 |
133 133 |
55 60 |
M20x42 M20x42 |
110 140 |
16 18 |
49 53 |
10 11 |
200 200 |
25 25 |
19 19 |
17 17 |
400 400 |
350 350 |
5 5 |
19 19 |
8 8 |
|
200L |
2 4.6.8 |
857 887 |
506 506 |
397 397 |
450 450 |
318 318 |
388 388 |
305 305 |
369 369 |
133 133 |
55 60 |
M20x42 M20x42 |
110 140 |
16 18 |
49 53 |
10 11 |
200 200 |
25 25 |
19 19 |
17 17 |
400 400 |
350 350 |
5 5 |
19 19 |
8 8 |
|
225M |
2 4.6.8 |
859 889 |
554 554 |
445 445 |
550 550 |
356 356 |
431 431 |
311 311 |
393 393 |
149 149 |
55 65 |
M20x42 M20x42 |
110 140 |
16 18 |
49 58 |
10 11 |
225 225 |
28 28 |
19 19 |
20 20 |
500 500 |
450 450 |
5 5 |
19 19 |
8 8 |
|
250S |
2 4.6.8.10 |
979 979 |
616 616 |
485 485 |
550 550 |
406 406 |
484 484 |
311 311 |
421 421 |
168 168 |
65 75 |
M20x42 M20x42 |
140 140 |
18 20 |
58 67.5 |
11 12 |
250 250 |
30 30 |
24 24 |
22 22 |
500 500 |
450 450 |
5 5 |
19 19 |
8 8 |
|
250M |
2 4.6.8.10 |
1029 1029 |
616 616 |
485 485 |
550 550 |
406 406 |
484 484 |
349 349 368 368 |
456 456 478 478 |
168 168 |
65 75 |
M20x42 M20x42 |
140 140 |
18 20 |
58 67.5 |
11 12 |
250 250 |
30 30 |
24 24 |
22 22 |
500 500 |
450 450 |
5 5 |
19 19 |
8 8 |
|
280S |
2 4.6.8.10 |
1113 1143 |
675 675 |
547 547 |
660 660 |
457 457 |
542 542 |
190 190 |
70 80 |
M20x42 M20x42 |
140 170 |
20 22 |
62.5 71 |
12 14 |
280 280 |
38 38 |
24 24 |
22 22 |
600 600 |
550 550 |
6 6 |
24 24 |
8 8 |
||
|
280M |
2 4.6.8.10 |
1164 1194 |
675 675 |
547 547 |
660 660 |
457 457 |
542 542 |
419 419 |
529 529 |
190 190 |
70 80 |
M20x42 M20x42 |
140 170 |
20 22 |
65.5 71 |
12 14 |
280 280 |
38 38 |
24 24 |
22 22 22 22 |
600 600 600 600 |
550 550 550 550 |
6 6 |
24 24 |
8 8 |
|
315S |
2 4.6.8.10 |
1263 1330 |
842 842 |
617 617 |
660 660 |
508 508 |
635 635 |
406 406 |
680 680 |
216 216 |
75 90 |
M20x42 M20x42 |
140 170 |
20 25 |
67.5 81 |
14 14 |
315 315 |
45 45 |
28 28 |
6 6 |
24 24 |
8 8 |
|||
|
315M |
2 4.6.8.10 |
1263 1330 |
842 842 |
617 617 |
660 660 |
508 508 |
635 635 |
457 457 |
680 680 |
216 216 |
75 90 |
M20x42 M20x42 |
140 170 |
20 25 |
67.5 81 |
14 14 |
315 315 |
45 45 |
28 28 |
22 22 |
600 600 |
550 550 |
6 6 |
24 24 |
8 8 |
|
355S |
2 4.6.8.10 |
1516 1556 |
997 997 |
698 698 |
800 800 |
610 610 |
736 736 |
500 500 |
750 750 |
254 254 |
85 100 |
M24x42 M24x50 |
170 210 |
22 28 |
76 90 |
14 16 |
355 355 |
52 52 |
28 28 |
25 25 |
740 740 |
680 680 |
6 6 |
24 24 |
8 8 |
|
355M |
2 |
1516 |
997 |
698 |
800 |
610 |
736 |
560 |
750 |
254 |
85 |
M24x42 |
170 |
22 |
76 |
14 |
355 |
52 |
28 |
25 |
740 |
680 |
6 |
24 |
8 |
|
4.6.8.10 |
1556 |
997 |
698 |
800 |
610 |
736 |
560 |
750 |
254 |
100 |
M24×50 |
210 |
28 |
90 |
16 |
355 |
52 |
28 |
25 |
740 |
680 |
6 |
24 |
8 |
|
MOUNTING AND OVERALL DIMENSIONS
LMG-56-355-B5
|
Type |
Poles |
Overal Dimensions |
Mouning Dimensions |
|||||||||||||||
|
I30 |
h31 |
d30 |
d24 |
h37 |
d1 |
|
I1 |
b1 |
d2 |
h1 |
L21 |
d20 |
d25 |
I20 |
d22 |
n |
||
|
L |
HD |
AC |
P |
AD |
D |
DH |
E |
F |
G |
GD |
LA |
M |
N |
T |
S |
n |
||
|
56 |
2.4 |
216 |
176 |
120 |
140 |
106 |
11 |
M4x12 |
23 |
4 |
8.5 |
4 |
10 |
115 |
95 |
3 |
10 |
4 |
|
63 |
2.4.6 |
250 |
193 |
136 |
160 |
113 |
14 |
M5x12 |
30 |
5 |
11 |
5 |
10 |
130 |
110 |
3.5 |
10 |
4 |
|
71 |
2.4.6.8 |
276 |
236 |
155 |
200 |
136 |
19 |
M6x16 |
40 |
6 |
15.5 |
6 |
12 |
165 |
130 |
3.5 |
12 |
4 |
|
80A |
2.4.6.8 |
314 |
253 |
176 |
200 |
153 |
22 |
M6x16 |
50 |
6 |
18.5 |
6 |
12 |
165 |
130 |
3.5 |
12 |
4 |
|
80B |
2.4.6.8 |
339 |
253 |
176 |
200 |
153 |
22 |
M6x16 |
50 |
6 |
18.5 |
6 |
12 |
165 |
130 |
3.5 |
12 |
4 |
|
90L |
2.4.6.8 |
372 |
285 |
184 |
250 |
160 |
24 |
M8x19 |
50 |
8 |
20 |
7 |
14 |
215 |
180 |
4 |
15 |
4 |
|
100S |
2.4.6.8 |
381 |
295 |
206 |
250 |
170 |
28 |
M10x22 |
60 |
8 |
24 |
7 |
13 |
215 |
180 |
4 |
15 |
4 |
|
100L |
2.4.6.8 |
409 |
295 |
206 |
250 |
170 |
28 |
M10x22 |
60 |
8 |
24 |
7 |
13 |
215 |
180 |
4 |
15 |
4 |
|
112M |
2.4.6.8 |
453 |
346 |
240 |
300 |
196 |
32 |
M10x22 |
80 |
10 |
27 |
8 |
14 |
265 |
230 |
4 |
15 |
4 |
|
132S |
4.6.8 |
488 |
391 |
283 |
350 |
216 |
38 |
M12x28 |
80 |
10 |
33 |
8 |
15 |
300 |
250 |
5 |
19 |
4 |
|
132M |
2.4.6.8 |
528 |
391 |
283 |
350 |
216 |
38 |
M12x28 |
80 |
10 |
33 |
8 |
15 |
300 |
250 |
5 |
19 |
4 |
|
160S |
2 4.6.8 |
629 629 |
428 428 |
314 314 |
350 350 |
253 253 |
42 48 |
M16x36 M16x36 |
110 110 |
12 14 |
37 42.5 |
8 9 |
16 16 |
300 300 |
250 250 |
5 5 |
19 19 |
4 4 |
|
160M |
2 4.6.8 |
673 673 |
428 428 |
314 314 |
350 350 |
253 253 |
42 48 |
M16x36 M16x36 |
110 110 |
12 14 |
37 42.5 |
8 9 |
16 16 |
300 300 |
250 250 |
5 5 |
19 19 |
4 4 |
|
180S |
2 4 |
699 699 |
468 468 |
355 355 |
400 400 |
268 268 |
48 55 |
M16x36 M20x42 |
110 110 |
14 16 |
42.5 49 |
9 10 |
15 15 |
350 350 |
300 300 |
5 5 |
19 19 |
4 4 |
|
180M |
2 4.6.8 |
764 764 |
468 468 |
355 355 |
400 400 |
268 268 |
48 55 |
M16x36 M20x42 |
110 110 |
14 16 |
45.5 49 |
9 10 |
15 15 |
350 350 |
300 300 |
5 5 |
19 19 |
4 4 |
|
200M |
2 4.6.8 |
822 852 |
531 531 |
397 397 |
450 450 |
306 306 |
55 60 |
M20x42 M20x42 |
110 140 |
16 18 |
49 53 |
10 11 |
17 17 |
400 400 |
350 350 |
5 5 |
19 19 |
8 8 |
|
200L |
2 4.6.8 |
857 887 |
531 531 |
397 397 |
450 450 |
306 306 |
55 60 |
M20x42 M20x42 |
110 140 |
16 18 |
49 53 |
10 11 |
17 17 |
400 400 |
350 350 |
5 5 |
19 19 |
8 8 |
|
225M |
2 4.6.8 |
859 859 |
604 604 |
445 445 |
550 550 |
329 329 |
55 65 |
M20x42 M20x42 |
110 140 |
16 18 |
49 58 |
10 11 |
20 20 |
500 500 |
450 450 |
5 5 |
19 19 |
8 8 |
|
250S |
2 4.6.8.10 |
979 979 |
641 641 |
485 485 |
550 550 |
366 366 |
65 75 |
M20x42 M20x42 |
140 140 |
18 20 |
58 67.5 |
11 12 |
22 22 |
500 500 |
450 450 |
5 5 |
19 19 |
8 8 |
|
250M |
2 4.6.8.10 |
1029 1029 |
641 641 |
485 485 |
550 550 |
366 366 |
65 75 |
M20x42 M20x42 |
140 140 |
18 20 |
58 67.5 |
11 12 |
22 22 |
500 500 |
450 450 |
5 5 |
19 19 |
8 8 |
|
280S |
2 4.6.8.10 |
1113 1143 |
725 725 |
547 547 |
660 660 |
395 395 |
70 80 |
M20x42 M20x42 |
140 170 |
20 22 |
62.5 71 |
12 14 |
22 22 |
600 600 |
550 550 |
6 6 |
24 24 |
8 8 |
|
280M |
2 4.6.8.10 |
1164 1194 |
725 725 |
547 547 |
660 660 |
395 395 |
70 80 |
M20x42 M20x42 |
140 170 |
20 22 |
65.5 71 |
12 14 |
22 22 |
600 600 |
550 550 |
6 6 |
24 24 |
8 8 |
|
315S |
2 4.6.8.10 |
1263 1330 |
857 857 |
617 617 |
660 660 |
527 527 |
75 90 |
M20x42 M20x42 |
140 170 |
20 25 |
67.5 81 |
14 14 |
22 22 |
600 600 |
550 550 |
6 6 |
24 24 |
8 8 |
|
315M |
2 4.6.8.10 |
1263 1330 |
857 857 |
617 617 |
660 660 |
527 527 |
75 90 |
M20x42 M20x42 |
140 170 |
20 25 |
67.5 81 |
14 14 |
22 22 |
600 600 |
550 550 |
6 6 |
24 24 |
8 8 |
|
355S |
2 4.6.8.10 |
1516 1556 |
1042 1042 |
698 698 |
800 800 |
642 642 |
85 100 |
M24x42 M24x50 |
170 210 |
22 28 |
76 90 |
14 16 |
25 25 |
740 740 |
680 680 |
6 6 |
24 24 |
8 8 |
|
355M |
2 4.6.8.10 |
1516 1556 |
1042 1042 |
698 698 |
800 800 |
642 642 |
85 100 |
M24x42 M24x50 |
170 210 |
22 28 |
76 90 |
14 16 |
25 25 |
740 740 |
680 680 |
6 6 |
24 24 |
8 8 |
ZHEJIANG QIZHI MOTOR CO., LTD. is a professional production of various kinds of small and medium-sized modern enterprise, the main products include ME2 series Grundfos high-efficiency aluminum motor, Gost Standard Three Phase Asynchronous Motor, IE1 series three-phase asynchronous motor, IE2 series three-phase asynchronous motor, IE3 series super efficient three-phase asynchronous motor, YD series pole-changing multi-speed three phase asynchronous electric motor, YDT series three-phase consequent-poles asynchronous motor, YCT series electromagnetic speedregulating motor, MS series three-phase asynchronous motor with aluminium housing, YVF2 series three-phase frequency controlled asynchronous motor, YVF2 series of frequency conversion aluminum shell speed three-phase asynchronous motor, YEJ series electromagnetic braking three-phase asynchronous motor, YC/YCL series heavy-duty single-phase capacitors start induction motor, MLYL seriessingle-phase dual-capacitor induction motor, YYB Series pump for three-phase asynchronous motor, IRG/SW Single stage single pipette centrifugal pump, CDLICDLF stainless steel vertical multistage pump, etc. OEM Gost Standard Three Phase Asynchronous Motor Factory
ZHEJIANG QIZHI MOTOR CO., LTD. depending on the talent for the enterprise development, with strong technology research and development team, has the industry's most advanced automated nc production equipment, advanced technology and equipment, usingadvanced design software for product design, perfect modern management system, strictly in accordance with "ISO-9001"national quality management system certification, production to make the success rate of new product development speed and improve, for the same industry leading level. As Custom Gost Standard Three Phase Asynchronous Motor Suppliers, the company has advanced motor testing equipment, to guarantee product quality, won the domestic andforeign customers a wide range of trust and praise, the company through the Chinese CCC certification and CQC certification, ISO-
9001 international quality system certification, CE certification, SGS certification (ROHS), and obtained the national electrical products export quality license, with our continuously innovation in the face of the market; The products sell well all over the country and exported to southeast Asia, Germany, Italy, Poland, Britain, France, the Middle East, South America, Africa, Asia, etc. More than 80 countries and regions. In domestic widely used in air compressor, washing machine, water pump, fan, mechanical industry, reducer, such as the host.
We would like to more higher quality product, more lower preferential price, complete thoughtul pre-sale, sale, after-sale service, cooperate with friends from all walks of life, hand in hand advance together, altogether will create the glorious future.
Founded in
company area
Employees
Exported countries
Copyright © Zhejiang Qizhi Motor Co., Ltd.All Rights Reserved.
