Product overview

YC series motors are totally enclosed fan cooled(TEFC)heavy-duty single-phase induction motors.The mounting dimension is fully comformed with IEC standard.When rated output is 3HP or below.motors and of capacitors.and 4HP or above with capacitor start and run.YC series motors are integrated with up-to-date design, best quality materials construction,and possess the features of pleasant-looking appearance,outstanding performance, easy maintenance The also concentrate the advantages of high staring torque .smooth turning, low temperatre rise,low noise and great overload performance.YC series motora are suitable for powering small type drilling machines and water pimps,especially for family workshops where only single-phase current supply is available.

Operating conditions

Ambient temperature:-15℃≤0≤40℃

Altitude:not exceeding 1000m

Rated voltage:220V

Rated frequency:50Hz、60Hz

Protection class:IP44、IP54

Insulation class:B、F

Cooling method:IC0141

Duty:S1 (continuous)

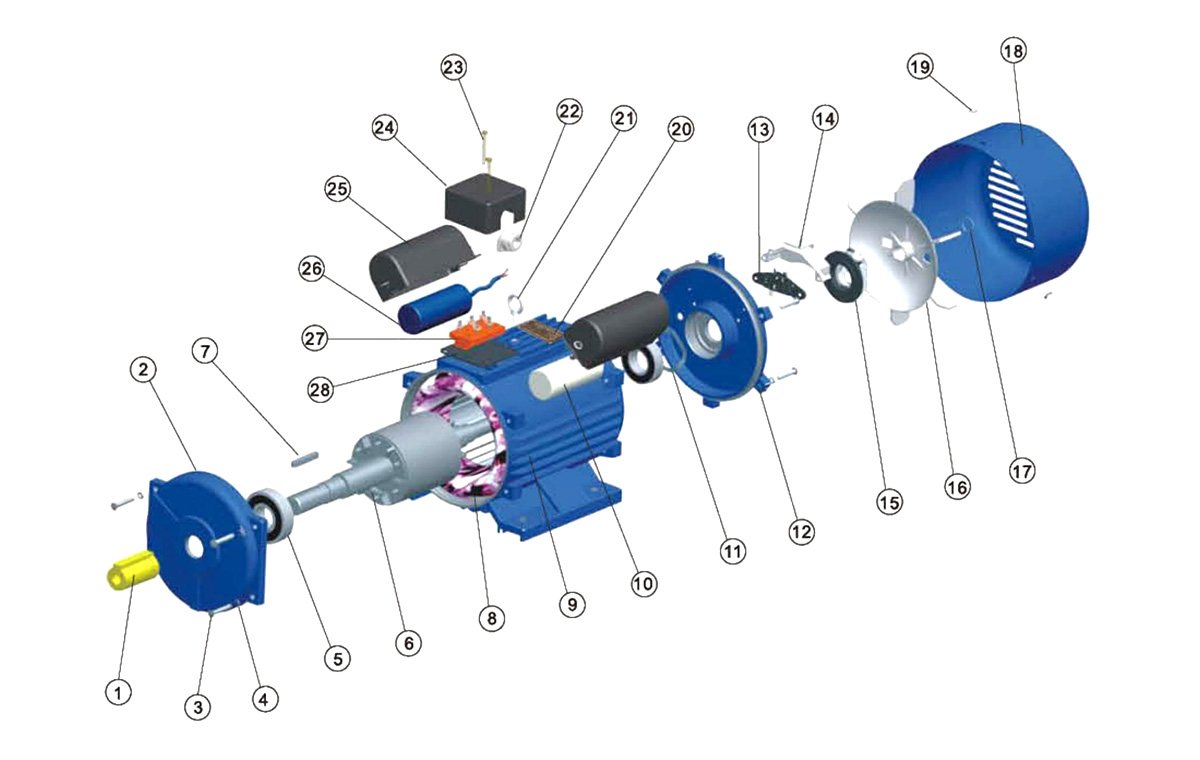

EXPLODED VIEW

1.Shaft cover

2.Front endshield

3.Bolt

4.Spring washer

5.Bearing

6.Rotor

7.Key

8.Stator

9.Frame

10.Capactior CD60

11.Wave form

12.Rear endshield

13.Backp lane

14.Shield

15.Centrifugal switch

16.Fan

17.Fan clamp

18.Fan cowl

19.Fan cowl Screw

20.Nameplate

21.Eyebolt

22.Jacket

23.Screw

24.Terminal box

25.Capacitor box lid

26.Capacitor CBB60

27.Terminal board

28.Leather washer

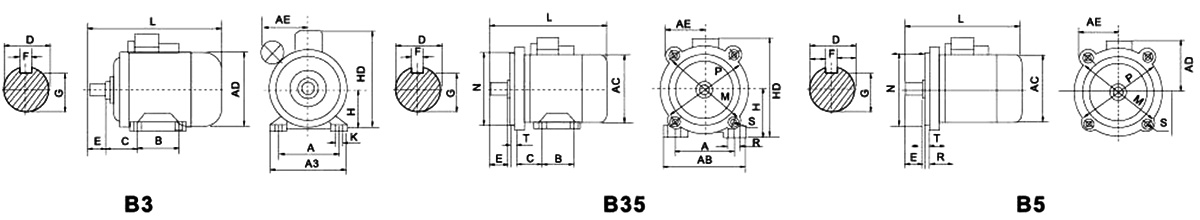

Overall & Installation dimensions

Frame No.	Mounting Dimensions(mm)															Overall Dimensions(mm)
Frame No.	A	B	C	D	E	F	G	H	K	M	N	P	R	S	T	AB	AC	AE	AD	HD	L
80	125	100	50	19	40	6	15.5	80	10	165	130	200	0	12	3.5	160	165	110	120	200	310
90S	140	100	56	24	50	8	20	90	10	165	130	200	0	12	3.5	180	185	120	140	240	370
90L	140	125	56	24	50	8	20	90	10	165	130	200	0	12	3.5	180	185	120	140	240	400
100L	160	140	63	28	60	8	24	100	12	215	180	250	0	15	4.0	205	220	130	145	260	430
112M	190	140	70	28	60	8	24	112	12	215	180	250	0	15	4.0	245	250	140	160	300	455
132S	216	140	89	38	80	10	33	132	12	265	230	300	0	15	4.0	280	262	150	210	350	525
132M	216	178	89	38	80	10	33	132	12	265	230	300	0	15	4.0	280	262	150	210	350	553

Technical date

Type	Output		Voltage (V)	Frequency (HZ)	Current (A)	Speed (r/min)	Eff (%)	Power factor	Locked torque Rated torque Tstart/Tn	Locked current Rated torque lst/ln	Max torque Rated torque Tmax/Tn
Type	HP	KW	Voltage (V)	Frequency (HZ)	Current (A)	Speed (r/min)	Eff (%)	Power factor	Locked torque Rated torque Tstart/Tn	Locked current Rated torque lst/ln	Max torque Rated torque Tmax/Tn
YC80a-2	0.5	0.37	220	50	3.4	2800	66	0.74	3	6.5	2
YC80b-2	0.75	0.55	220	50	5.0	2800	67	0.74	3	6.5	2
YC80C-2	1	0.75	220	50	6.7	2800	68	0.75	3	6.5	2
YC90S-2	1.5	1.1	220	50	8.8	2800	71	0.8	2.8	7	2
YC90L-2	2	1.5	220	50	11.5	2800	72	0.82	2.8	7	2
YC100L-2	3	2.2	220	50	16.5	2820	74	0.82	2.5	7	2
YC112M1-2	4	3	220	50	21.4	2820	76	0.84	2.2	7	2
YC112M2-2	5	3.7	220	50	24.8	2820	79	0.86	2.2	7	2
YC80a-4	0.33	0.25	220	50	3.3	1400	56	0.62	3	6	2
YC80b-4	0.5	0.37	220	50	4.4	1400	60	0.64	3	6	2
YC80C-4	0.75	0.55	220	50	6.0	1400	64	0.65	3	6	2
YC90S-4	1	0.75	220	50	7.1	1400	67	0.72	2.8	6.5	2
YC90L-4	1.5	1.1	220	50	9.9	1400	70	0.72	2.8	6.5	2
YC100L-4	2	1.5	220	50	13.0	1410	72	0.73	2.8	6.5	2
YC112M-4	3	2.2	220	50	18.5	1410	73	0.74	2.5	6.5	2
YC132Sa-4	4	3	220	50	22.4	1420	76	0.8	2.2	6.5	2
YC132Sb-4	5	3.7	220	50	26.0	1430	79	0.82	2.2	6.5	2
YC132M-4	7.5	5.5	220	50	32.1	1430	82	0.95	2.2	6.5	2

Technical date

Type	Output		Voltage (V)	Frequency (HZ)	Current (A)	Speed (r/min)	Eff (%)	Power factor	Locked torque Rated torque Tstart/Tn	Locked current Rated torque Ist/In	Max torque Rated torque Tmax/Tn
Type	HP	KW	Voltage (V)	Frequency (HZ)	Current (A)	Speed (r/min)	Eff (%)	Power factor	Locked torque Rated torque Tstart/Tn	Locked current Rated torque Ist/In	Max torque Rated torque Tmax/Tn
YCL90S-2	1.5	1.1	220	50	7.2	2820	73.2	0.95	2.8	6	1.8
YCL90L-2	2	1.5	220	50	8.9	2820	76	0.97	2.8	7	1.8
YCL100L-2	3	2.2	220	50	13.2	2830	78.8	0.96	3	6.5	1.8
YCL90S-4	1	0.75	220	50	5.0	1400	73.3	0.93	2.8	6.5	1.8
YCL90L-4	1.5	1.1	220	50	7.8	1400	75	0.9	2.5	6	1.8
YCL100L-4	2	1.5	220	50	9.3	1410	79.4	0.92	2.8	7	1.8
YCL112M-4	3	2.2	220	50	13.6	1420	81.6	0.9	2.3	6.5	1.8
YCL132Sa-4	4	3	220	50	18.2	1420	83.2	0.9	2.1	6.5	1.8
YCL132Sb-4	5	3.7	220	50	22.0	1430	84.9	0.9	2.1	6.5	1.8
YCL132M-4	7.5	5.5	220	50	32.5	1430	85	0.9	2	6.5	1.8
