Product overview

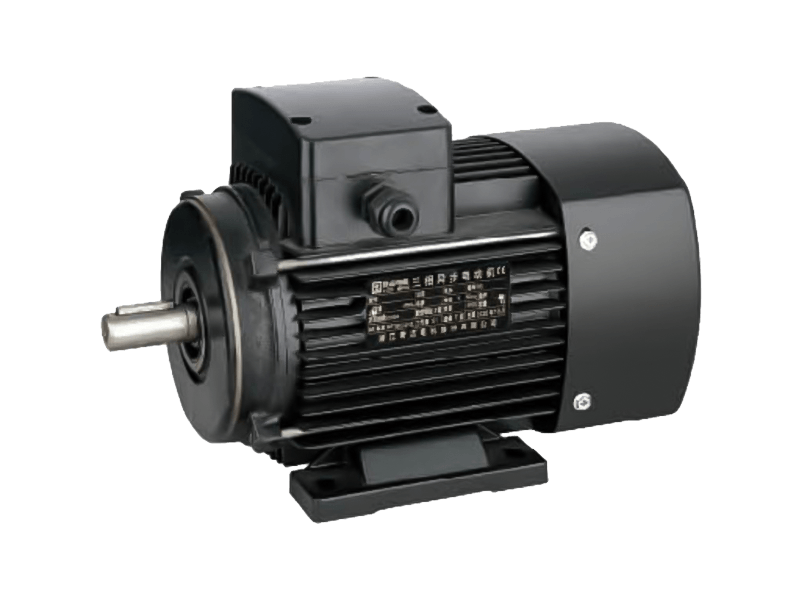

ME2 series aluminium-housing three phase asynchronous motors are developed from Y2 series three phase asynchronous motors，since aluminum-alloy material has been introduced into its housing，end shield.terminal box and removable feet，IE2 series aluminium-housing motors owns a beautiful appearance and a smooth surface.Despite that，dimensions and output power of IE2 series aluminium-housing motors are the same as those of IE2 series or Y2 series three phase asynchronous motors.IE2 series aluminium-housing motors have lots of futures such as high efficiency and energy saving，large starting torque，excellent performance，low noise and vibration，compact structure，high reliability，easy operation and etc.Operating conditions of IE2 series aluminium-housing motors are identical with Y2 series motors，while efficiency class are in line with Chinese National standard GB 18613-2012 class Ⅲ.
Operating conditions
Ambient temperature:-15℃<40℃
Altitude:Up to 1000 meters
Rated voltage:380V、400V、415V
Rated frequency:50Hz、60Hz
Connection:Output s 3kW,"Y"connection
Output ≤4kW,"A"connection
Duty:Continuous(S1)
Ingress protection:IP54/IP55
Insulation:Class B/Class F
Cooling method:IC411
|

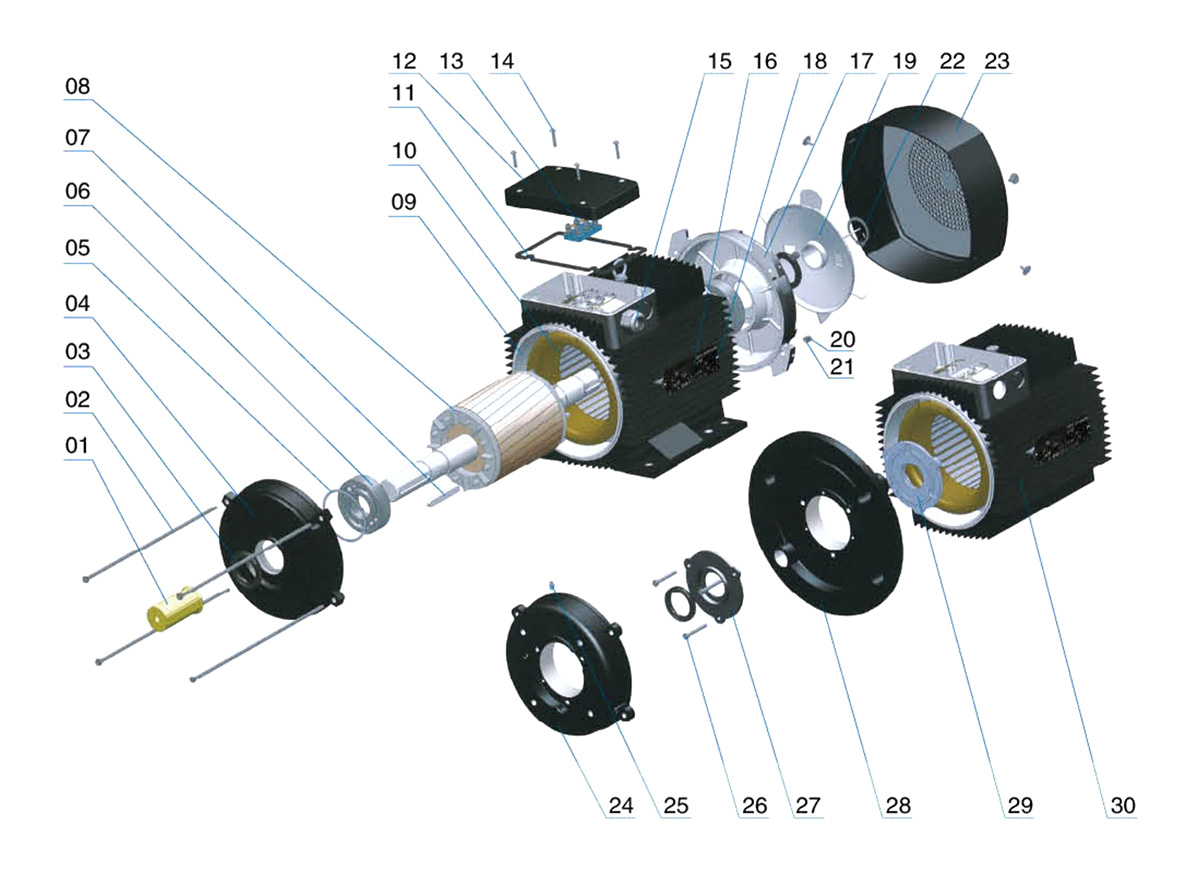

1.Shaft cover 2.Bolt 3.Oil seal 4.B3 shield 5.Wave washer 6.Bearing 7.Shaft key 8.Rotor 9.B3motor casing 10.Winding |
11.Seal 12.Electrical wiring lid 13.Wiring board 14.Bolt 15.Barrel 16.Nameplate 17.Rivet 18.Rear endshield 19.Fan 20.Nut |
21.Washer 22.Ring-shield 23.Fan cowl 24.B14flange 25.Nozzle 26.Bolt 27.Outer bearing cover 28.B5 flange 29.Internal bearing cover 30.B5 motor casing |
Technical date
|
Type |
Output |
Full Load
|
Ist/TN |
Tst/TN |
Tmax/TN |
||||
|
KW |
HP |
Speed (r/min) |
Current IN(A) |
Eff η(%) |
Power factor (cosΦ) |
||||
|
Synchronous Speed 3000 rpm |
|||||||||
|
ME2-63M1-2 |
0.18 |
0.25 |
2720 |
0.53 |
65 |
0.80 |
5.5 |
2.2 |
2.2 |
|
ME2-63M2-2 |
0.25 |
0.34 |
2720 |
0.69 |
68 |
0.81 |
5.5 |
2.2 |
2.2 |
|
ME2-71M1-2 |
0.37 |
0.5 |
2740 |
0.99 |
70 |
0.81 |
6.1 |
2.2 |
2.2 |
|
ME2-71M2-2 |
0.55 |
0.75 |
2740 |
1.4 |
73 |
0.82 |
6.1 |
2.2 |
2.3 |
|
ME2-80M1-2 |
0.75 |
1 |
2835 |
1.83 |
77.4 |
0.83 |
6.1 |
2.2 |
2.3 |
|
ME2-80M2-2 |
1.1 |
1.5 |
2835 |
2.58 |
79.6 |
0.84 |
7 |
2.2 |
2.3 |
|
ME2-90S-2 |
1.5 |
2 |
2845 |
3.43 |
81.3 |
0.84 |
7 |
2.2 |
2.3 |
|
ME2-90L-2 |
2.2 |
3 |
2845 |
4.85 |
83.2 |
0.85 |
7 |
2.2 |
2.3 |
|
ME2-100L-2 |
3 |
4 |
2875 |
6.31 |
84.6 |
0.87 |
7.5 |
2.2 |
2.3 |
|
ME2-112M-2 |
4 |
5.5 |
2895 |
8.1 |
85.8 |
0.88 |
7.5 |
2.2 |
2.3 |
|
ME2-132S1-2 |
5.5 |
7.5 |
2905 |
11 |
87 |
0.88 |
7.5 |
2.2 |
2.3 |
|
ME2-132S2-2 |
7.5 |
10 |
2905 |
14.9 |
88.1 |
0.88 |
7.5 |
2.2 |
2.3 |
|
Synchronous Speed 1500 rpm |
|||||||||
|
ME2-63M1-4 |
0.12 |
0.17 |
1310 |
0.44 |
57 |
0.72 |
4.4 |
2.1 |
2.2 |
|
ME2-63M2-4 |
0.18 |
0.25 |
1310 |
0.62 |
60 |
0.73 |
4.4 |
2.1 |
2.2 |
|
ME2-71M1-4 |
0.25 |
0.34 |
1330 |
0.79 |
65 |
0.75 |
5.2 |
2.1 |
2.2 |
|
ME2-71M2-4 |
0.37 |
0.5 |
1330 |
1.12 |
67 |
0.74 |
5.2 |
2.1 |
2.2 |
|
ME2-80M1-4 |
0.55 |
0.75 |
1395 |
1.57 |
71 |
0.75 |
5.2 |
2.4 |
2.3 |
|
ME2-80M2-4 |
0.75 |
1 |
1395 |
2.03 |
79.6 |
0.76 |
6 |
2.3 |
2.3 |
|
ME2-90S-4 |
1.1 |
1.5 |
1405 |
2.89 |
81.4 |
0.77 |
6 |
2.3 |
2.3 |
|
ME2-90L-4 |
1.5 |
2 |
1405 |
3.7 |
82.8 |
0.79 |
6 |
2.3 |
2.3 |
|
ME2-100L1-4 |
2.2 |
3 |
1435 |
5.16 |
84.3 |
0.81 |
7 |
2.3 |
2.3 |
|
ME2-100L2-4 |
3 |
4 |
1435 |
6.78 |
85.5 |
0.82 |
7 |
2.3 |
2.3 |
|
ME2-112M-4 |
4 |
5.5 |
1445 |
8.8 |
86.6 |
0.82 |
7 |
2.3 |
2.3 |
|
ME2-132S-4 |
5.5 |
7.5 |
1445 |
11.7 |
87.7 |
0.83 |
7 |
2.3 |
2.3 |
|
ME2-132M-4 |
7.5 |
10 |
1445 |
15.6 |
88.7 |
0.84 |
7 |
2.3 |
2.3 |
|
Synchronous Speed 960 rpm |
|||||||||
|
ME2-71M1-6 |
0.18 |
0.25 |
850 |
0.74 |
56 |
0.66 |
4 |
1.9 |
2 |
|
ME2-71M2-6 |
0.25 |
0.34 |
850 |
0.95 |
59 |
0.68 |
4 |
1.9 |
2 |
|
ME2-80M1-6 |
0.37 |
0.5 |
890 |
1.3 |
62 |
0.70 |
4.7 |
1.9 |
2 |
|
ME2-80M2-6 |
0.55 |
0.75 |
890 |
1.79 |
65 |
0.72 |
4.7 |
1.9 |
2.1 |
|
ME2-90S-6 |
0.75 |
1 |
915 |
2.29 |
75.9 |
0.72 |
5.5 |
2 |
2.1 |
|
ME2-90L-6 |
1.1 |
1.5 |
915 |
3.18 |
78.1 |
0.73 |
5.5 |
2 |
2.1 |
|
ME2-100L-6 |
1.5 |
2 |
945 |
3.94 |
79.8 |
0.75 |
5.5 |
2 |
2.1 |
|
ME2-112M-6 |
2.2 |
3 |
945 |
5.6 |
81.8 |
0.76 |
6.5 |
2 |
2.1 |
|
ME2-132S-6 |
3 |
4 |
965 |
7.4 |
83.3 |
0.76 |
6.5 |
2.1 |
2.1 |
|
ME2-132M1-6 |
4 |
5.5 |
965 |
9.8 |
84.6 |
0.76 |
6.5 |
2.1 |
2.1 |
|
ME2-132M2-6 |
5.5 |
7.5 |
965 |
12.9 |
86 |
0.77 |
6.5 |
2.1 |
2.1 |
|
Synchronous Speed 750 rpm |
|||||||||
|
ME2-80M1-8 |
0.18 |
0.25 |
630 |
0.88 |
51 |
0.61 |
3.3 |
1.8 |
1.9 |
|
ME2-80M2-8 |
0.25 |
0.34 |
640 |
1.15 |
54 |
0.61 |
3.3 |
1.8 |
1.9 |
|
ME2-90S-8 |
0.37 |
0.5 |
660 |
1.49 |
62 |
0.61 |
4 |
1.8 |
1.9 |
|
ME2-90L-8 |
0.55 |
0.75 |
660 |
2.18 |
63 |
0.61 |
4 |
1.8 |
2 |
|
ME2-100L1-8 |
0.75 |
1 |
680 |
2.39 |
71 |
0.67 |
4 |
1.8 |
2 |
|
ME2-100L2-8 |
1.1 |
1.5 |
680 |
3.32 |
73 |
0.69 |
5 |
1.8 |
2 |
|
ME2-112M-8 |
1.5 |
2 |
690 |
4.5 |
75 |
0.69 |
5 |
1.8 |
2 |
|
ME2-132S-8 |
2.2 |
3 |
690 |
6 |
78 |
0.71 |
6 |
1.8 |
2 |
|
ME2-132M-8 |
3 |
4 |
710 |
7'9 |
79 |
0.73 |
6 |
1.8 |
2 |
