YD series pole-changing multi-speed three phase asynchronous electric motor Custom

Home / Products / Three-phase Asynchronous Motor / YD Series / YD series pole-changing multi-speed three phase asynchronous electric motor
YD series pole-changing multi-speed three phase asynchronous electric motor
  • YD series pole-changing multi-speed three phase asynchronous electric motor
  • YD series pole-changing multi-speed three phase asynchronous electric motor

YD series pole-changing multi-speed three phase asynchronous electric motor

Product Details

Product overview

YD series three-pahse multi-speed induction motors are one of the derived series of Y2 series induction motors of our national uniform design, it have following features: excellent performance, attractive appearance and good interchangeability for the same kind of products aborad. The protection class IP44.

The motors are designed in three types: double speed, three speed and four speed. These speed rotes can be changed in stages. The motors are widely used on applications in the equipments where the changed rates in stages are needed, such as mechanism, mine, metallurgy, textiles, printing and dyeing, chemical industry, agricultural etc. They can also simplify or take the place of reducting gearbox in the mechanical drive lines.

Operating conditions

Ambient temperature:-15℃≤0≤40℃

Altitude: not exceeding 1000m

Rated voltage:380V (1±5%)V

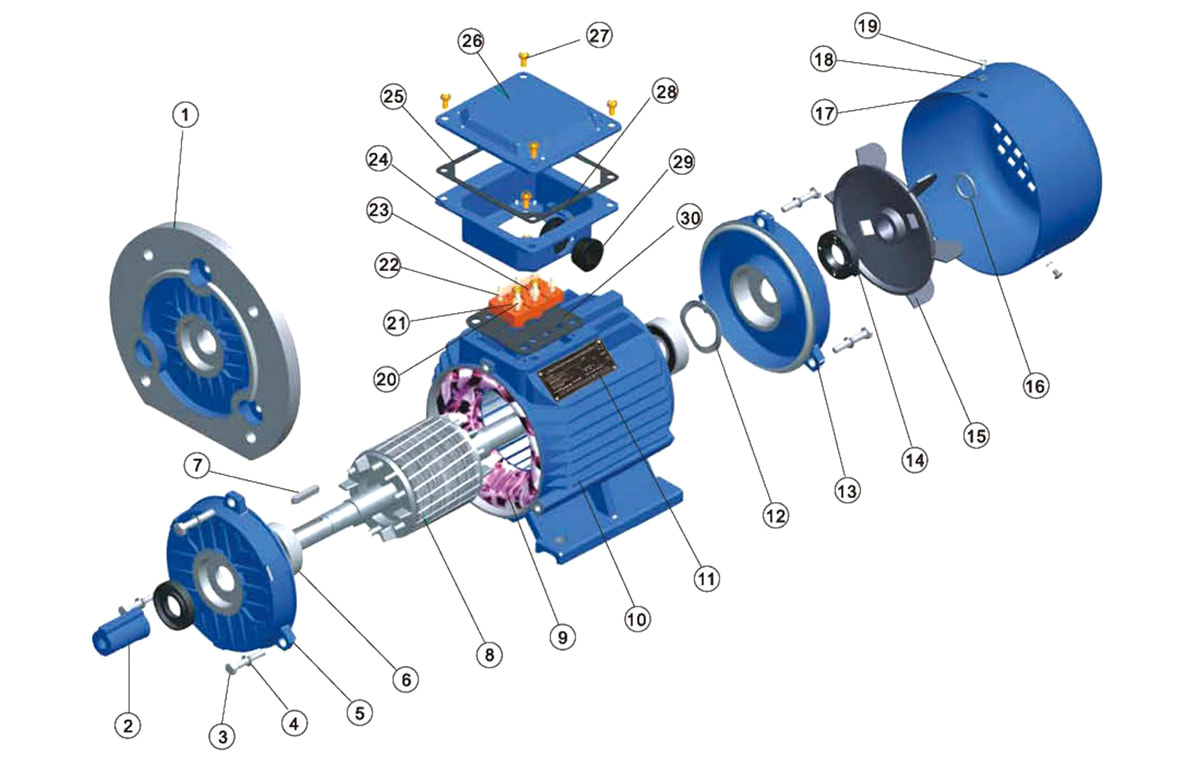

EXPLODED VIEW

1.B5 Flange

2.Shaft cover

3.Bolt

4.Spring washer

5.Front endshield

6.Bearing

7.Key

8.Rotor

9.Stator

10.Frame

11.Name plate

12.Wave form

13.Rear endshield

14.Oil seal（Ring）

15.Fan

16.Fan clamp

17.Fan cowl

18.Washer

19.Fan cowl Screw

20.Brass washer

21.Brass net

22.Brass lug

23.Terminal board

24.Terminal box base

25.Gasket

26.Terminal box lid

27.Screw

28.Earth mark

29.Jacket

30.Leather washer


Technical date ( 380V 50Hz )

Frame size

Spocd

(r/min)

Output

(KW)

Current

(A)

Eff

(%)

Power Factor (%)

Locked current

Rated torque

Ist/In

Locked torque

Rated torque

Tstart/Tn

Max torque

Rated torque

Tmax/Tn

YD801

4

1420

0.45

1.4

66

0.74

6.5

1.5

1.8

2

2860

0.55

1.5

65

0.85

7

1.6

1.8

YD802

4

1420

0.55

1.7

68

0.74

6.5

1.5

1.8

2

2860

0.75

2.0

66

0.85

7

1.6

1.8

YD90S

4

1430

0.85

2.3

74

0.77

6.5

1.5

1.8

2

2850

1.1

2.8

73

0.84

7

1.6

1.8

YD90L

4

1430

1.3

3.3

76

0.78

6.5

1.5

1.8

2

2850

1.8

4.3

74

0.84

7

1.6

1.8

YD100L1

4

1430



4.8

78

0.81

6.5

1.5

1.8

2

2850

2.4

5.6

76

0.86

7

1.6

1.8

YD100L2

4

1430

2.4

5.6

79

0.83

6.5

1.5

1.8

2

2850



6.7

77

0.89

7

1.6

1.8

YD112M

4

1450

3.3

7.4

81

0.83

6.5

1.5

1.8

2

2860



8.6

80

0.88

7

1.6

1.8

YD132S

4

1450

4.5

9.8

83

0.84

6.5

1.5

1.8

2

2860

5.5

11.9

79

0.88

7

1.6

1.8

YD132M

4

1450

6.5

13.8

84

0.85

6.5

1.5

1.8

2

2880

8

17.1

80

0.89

7

1.6

1.8

YD160M

4

1460

9

18.5

87

0.85

6.5

1.5

1.8

2

2920

11

22.9

82

0.89

7

1.6

1.8

YD160L

4

1460

11

22.3

87

0.86

6.5

1.5

1.8

2

2920

14

28.8

82

0.90

7

1.6

1.8

YD180M

4

1470

15

29.4

89

0.87

6.5

1.5

1.8

2

2940

18.5

36.7

85

0.90

7

1.6

1.8

YD180L

4

1470

18.5

35.9

89

0.88

6.5

1.5

1.8

2

2940

22

42.7

86

0.91

7

1.6

1.8

YD200L

4

1470

26

49.9

89

0.89

6.5

1.4

1.8

2

2950

30

58.3

85

0.92

7

1.4

1.8

YD225S

4

1480

32

60.7

90

0.89

6.5

1.4

1.8

2

2960

37

71.7

86

0.92

7

1.4

1.8

YD225M

4

1480

37

69.4

91

0.89

6.5

1.4

1.8

2

2960

45

86.4

87

0.92

7

1.4

1.8

YD250M

4

1480

45

84.4

91

0.89

6.5

1.4

1.8

2

2960

55

103.2

88

0.92

7

1.4

1.8

YD280S

4

1480

60

111.3

91

0.90

6.5

1.4

1.8

2

2970

72

135.1

88

0.92

7

1.4

1.8

YD280M

4

1480

72

133.6

91

0.90

6.5

1.4

1.8

2

2970

82

152.2

88

0.93

7

1.4

1.8

YD90S

6

920

0.65

2.2

64

0.70

6

1.4

1.8

4

1420

0.85

2.3

70

0.79

6.5

1.3

1.8

YD90L

6

930

0.85

2.8

66

0.70



1.4

1.8

4

1420

1.1

3.0

71

0.79

6.5

1.3

1.8

YD100L1

6

940

1.3

3.8

74

0.70



1.4

1.8

4

1440

1.8

4.4

77

0.80

6.5

1.3

1.8

YD100L2

6

940

1.5

4.3

75

0.70



1.4

1.8

4

1440

2.2

5.4

77

0.80

6.5

1.4

1.8

YD112M

6

960

2.2

5.7

77

0.75



1.4

1.8

4

1440

2.8

6.7

77

0.82

6.5

1.3

1.8

YD132S

6

960

3

7.7

79

0.70



1,4

1.8

4

1440

4

9.5

80

0.82

6.5

1.3

1.8

YD132M

6

960

4

9.8

81

0.76



1.4

1.8

4

1440

5.5

12.3

80

0.85

6.5

1.3

1.8

YD160M

6

970

6.5

15.1

84

0.78



1.4

1.8

4

1460

8

17.4

83

0.85

6.5

1.3

1.8

YD160L

6

970

9

20.6

85

0.78



1.4

1.8

4

1460

11

23.4

84

0.85

6.5

1.3

1.8

YD180M

6

980

11

25.9

85

0.78



1.4

1.8

4

1470

14

29.8

85

0.85

6.5

1.3

1.8

YD180L

6

980

13

29.4

86

0.78



1.4

1.8

4

1460

16

33.6

85

0.85

6.5

1.3

1.8

YD200L

6

980

18.5

41.4

87

0.78



1.4

1.8

4

1460

22

44.7

87

0.86

6.5

1.3

1.8

YD225S

6

980

22

44.2

88

0.86

6.5

1.4

1.8

4

1470

28

56.2

87

0.87

7

1.3

1.8

YD225M

6

980

26

52.2

88

0.86

6.5

1.4

1.8

4

1470

34

66.0

87

0.90

7

1.3

1.8

YD250M

6

980

32

62.1

90

0.87

6.5

1.4

1.8

4

1470

42

74.7

88

0.91

7

1.3

1.8

YD280S

6

980

42

81.5

90

0.87

6.5

1.4

1.8

4

1480

55

104.2

89

0.90

7

1.3

1.8

YD280M

6

680

55

106.7

90

0.87

6.5

1.4

1.8

4

1420

72

138.1

89

0.89

7

1.3

1.8

YD90L

8

700

0.45

1.9

58

0.63

5.5

1.5

1.8

4

1420

0.75

1.92

72

0.87

6.5

1.5

1.8

YD100L

8

700

0.85

3.1

68

0.63

5.5

1.5

1.8

4

1420

1.5

3.5

75

0.88

6.5

1.5

1.8

YD112M

8

700

1.5

5.0

72

0.63

5.5

1.5

1.8

4

1420

2.4

5.3

78

0.88

6.5

1.5

1.8

YD132S

8

720

2.2

7.0

75

0.64

5.5

1.5

1.8

4

1440

3.3

7.1

80

0.88

6.5

1.5

1.8



Technical date ( 380V 50Hz )

Frame size

Speed

(r/min)

Output

(kw)

Current

(A)

Eff

(%)

Power Factor (%)

Locked current

Rated torque

Ist/In

Locked torque

Rated torque

Tstsrt/Tn

Max torque

Rated torque

Tmax/Tn

YD132M

8

720

3

9.0

78

0.65

5.5

1.5

1.8

4

1440

4.5

9.4

82

0.88

6.5

1.5

1.8

YD160M

8

730

5

139

83

0.66

5.5

1.5

1.8

4

1450

7.5

15.2

84

0.89

6.5

1.5

1.8

YD160L

8

730

7

19.0

85

0.66

5.5

1.5

1.8

4

1450

11

21.8

86

0.89

6.5

1.5

1.8

YD180L

8

730

11

26.0

86

0.74

6

1.5

1.8

4

1470

17

31.5

87

0.92

7

1.5

1.8

YD200L1

8

740

14

33.0

86

0.74

6

1.5

1.8

4

1470

22

41.3

88

0.92

7

1.5

1.8

YD200L2

8

740

17

40.1

87

0.74

6

1.5

1.8

4

1470

26

48.8

88

0.92

7

1.5

1.8

YD225M

8

740

24

53.2

89

0.77

6

1.4

1.8

4

1480

34

66.7

88

0.88

7

1.3

1.8

YD250M

8

740

30

64.9

90

0.78

6

1.4

1.8

4

1480

42

78-8

89

0.91

7

1.3

1.8

YD280S

8

740

40

83.5

91

0.80

6

1.4

1.8

4

1480

55

102

90

0.91

7

1.3

1.8

YD280M

8

680

47

96.9

91

0.81

6

1.4

1.8

4

930

67

122.9

90

0.92

7

1.3

18

YD90S

8

680

0.35

1.6

56

0.60

5

1.4

1.8

6

930

0.45

1.4

70

0.72

6

1.3

1.8

YD90L

8

710

0.45

1.9

59

0.60

5

1.5

1.8

6

950

0.65

1.9

71

0.73

6

1.5

1.8

YD100L

8

710

0.75

2.9

65

0.60

5

1.5

1.8

6

950

1.1

3.1

75

0,73

6

1.5

1.8

YD112M

8

710

1.3

4.5

72

0.61

5

1.5

1.8

6

950

1.8

4.8

78

0.73

6

1.5

1.8

YD132S

8

730

1.8

5.8

75

0.62

5

1.5

1.8

6

970

2.4

6.2

80

0.73

6

1.5

1.8

YD132M

8

730

2.6

8.2

78

0.62

5

1.5

1.8

6

970

3-7

9.4

82

073

6

1.5

1.8

YD160M

8

930

4.5

13.3

83

0.62

5

1.5

1.8

6

980

6

14.7

85

0.73

6

1.5

1.8

YD160L

8

930

6

17.5

84

0.62

5

15

1.8

6

980

8

19.4

86

0.73

6

1.5

10

YD180M

8

930

7.5

21.9

84

0.62

5

1.5

1.8

6

980

10

24.2

86

0.73

6

1.5

1.8

YD180L

8

730

9

24.8

85

0.65

5

1.5

1.8

6

980

12

28.3

86

075

6

1.5

18

YD200L1

8

730

12

32.5

86

0.65

5

1.5

1.8

6

980

17

39.1

87

0.76

6

1.5

18

YD200L2

8

730

15

40.3

87

0.65

5

1.5

1.8

6

980

20

45.4

88

0.76

6

1.5

1.8

YD100L

6/4/2

940/1420/

0.75/1.3/1.8

2.62/3.66/

67/72/71

0.65/0.75/

5.5/6/7

1.8/1.6/1.6

1.8/1.8/1.8

2880

4.53

0.85

YD112M

6/4/2

940/1440/

1.1/2/2.4

3.52/5.14/

73/74/74

0.65/0.81/

5.5/6/7

1.7/1.4/1.6

1.8/1.8/1.8

2890

5.80

0.85

YD132S

6/4/2

940/1440/

1.8/2.6/3

5.14/6.10/

75/78/71

0.71/0.83/

5.5/6/7

1.4/1.3/1.7

1.8/1.8/1.8

2900

7.38

0.87

YD132M1

6/4/2

940/1440/

2.2/3.3/4

6.03/7.46/

77/80/76

0.72/0.84/

5.5/6/7

1.3/1.3/1.7

1.8/1.8/1.8

2900

8.79

0-91

YD132M2

6/4/2

940/1440/

2.6/4/5

6.86/9.04/

80/80/77

0.72/0.84/

5.5/6/7

1.5/1.4/1.7

1.8/1.8/1.8

2900

10.8

0.91

YD160M

6/4/2

940/1440/

3.7/5/6

9.52/11.2/

81/81/76

0.72/0.84/

5.5/6/7

1.5/1.3/1.4

1.8/1.8/1.8

2900

13.2

0.91

YD160L

6/4/2

970/1490/

4.5/7/9

11.4/15.1/

83/83/79

0.72/0.85/

5.5/6/7

1.5/1.2/1.3

1.8/1.8/1.8

2930

18.8

0.92

YD112M

6/4/2

910/1460/

0.65/2/2.4

2.66/5.14/

59/74/74

0.63/0.81/

4.5/6/7

1.4/1.3/1.2

1.8/1.8/1.8

2930

5_80

0.85

YD132S

8/4/2

710/1440/

1/2.6/3

3.16/6.10/

69/78/74

0.61/0.83/

4.5/6/7

1.4/1.2/1.4

1.8/1.8/1.8

2900

7.08

0.87

YD132M

8/4/2

710/1440/

1.3/3.7/4.5

4.56/8.37/

71/80/75

0.61/0.84/

4.5/6/7

1.5/1.3/1.4

1.8/1.8/1.8

2900

10.0

0.91

YD160M

8/4/2

710/1440/

2.275/6

7.55/11.2/

75/81/76

0.59/0.84/

4.5/6Z7

1.4/1.3/1.4

1.8/1.8/1.8

2900

13.2

0.91

YD160L

8/4/2

720/1460/

2.8/7/9

9.21/15.10/

77/83/79

0.60/0.85/

5.5/6.5/7

1.3/1.2/1.3

1.8/1.8/1.8

2930

18.80

0.92

YD112M

8/4/2

710/940/

0.85/1/1.5

3.72/3.06/

62/68/75

0.56/0.73/

5.5/6.5/7

1.4/1.2/1.4

1.8/1.8/1.8

1400

3.53

0.86

YD132S

8/6/4

710/940/

1.1/1.5/1.8

4.10/4.22/

68/74/78

0.60/0.73/

5.5/6.5/7

1.4/1.3/1.3

1.8/1.8/1.8

1440

4.03

0.87

YD132M1

8/6/4

710/940/

1.5/2/2.2

5.18/5.41/

71/77/79

0.62/0.73/

55/6.5/7

1.3/1.5/1.4

1.8/1.8/1.8

1440

4.87

0.87

YD132M2

8/6/4

710/940/

1.8/2.6/3

6.13/6.84/

72/78/80

0.62/0.74/

55/6.5/7

1.5/1.5/1.5

1.8/1.8/1.8

1440

6.55

0.87

YD160M

8/6/4

720/970/

3.3/4/5.5

10.2/9.87/

79/81/83

0.62/0.76/

5.5/6.5/7

1.7/1.4/1.5

1.8/1.8/1.8

1460

11.6

0.87

YD160L

8/6/4

720/970/

4.5/6/7.5

13.8/14.5/

80/83/84

0.62/0.76/

5.5/6.5/7

1.6/1.6/1.5

1.8/1.8/1.8

1460

15.6

0.87



Zhejiang Qizhi Motor Co., Ltd.

ZHEJIANG QIZHI MOTOR CO., LTD. is a professional production of various kinds of small and medium-sized modern enterprise, the main products include ME2 series Grundfos high-efficiency aluminum motor, YD series pole-changing multi-speed three phase asynchronous electric motor, IE1 series three-phase asynchronous motor, IE2 series three-phase asynchronous motor, IE3 series super efficient three-phase asynchronous motor, YD series pole-changing multi-speed three phase asynchronous electric motor, YDT series three-phase consequent-poles asynchronous motor, YCT series electromagnetic speedregulating motor, MS series three-phase asynchronous motor with aluminium housing, YVF2 series three-phase frequency controlled asynchronous motor, YVF2 series of frequency conversion aluminum shell speed three-phase asynchronous motor, YEJ series electromagnetic braking three-phase asynchronous motor, YC/YCL series heavy-duty single-phase capacitors start induction motor, MLYL seriessingle-phase dual-capacitor induction motor, YYB Series pump for three-phase asynchronous motor, IRG/SW Single stage single pipette centrifugal pump, CDLICDLF stainless steel vertical multistage pump, etc. OEM YD series pole-changing multi-speed three phase asynchronous electric motor Factory

ZHEJIANG QIZHI MOTOR CO., LTD. depending on the talent for the enterprise development, with strong technology research and development team, has the industry's most advanced automated nc production equipment, advanced technology and equipment, usingadvanced design software for product design, perfect modern management system, strictly in accordance with "ISO-9001"national quality management system certification, production to make the success rate of new product development speed and improve, for the same industry leading level. As Custom YD series pole-changing multi-speed three phase asynchronous electric motor Suppliers, the company has advanced motor testing equipment, to guarantee product quality, won the domestic andforeign customers a wide range of trust and praise, the company through the Chinese CCC certification and CQC certification, ISO-
9001 international quality system certification, CE certification, SGS certification (ROHS), and obtained the national electrical products export quality license, with our continuously innovation in the face of the market; The products sell well all over the country and exported to southeast Asia, Germany, Italy, Poland, Britain, France, the Middle East, South America, Africa, Asia, etc. More than 80 countries and regions. In domestic widely used in air compressor, washing machine, water pump, fan, mechanical industry, reducer, such as the host.

We would like to more higher quality product, more lower preferential price, complete thoughtul pre-sale, sale, after-sale service, cooperate with friends from all walks of life, hand in hand advance together, altogether will create the glorious future.

  • 1996

    Founded in

  • 10000㎡

    company area

  • 200+

    Employees

  • 45+

    Exported countries

Zhejiang Qizhi Motor Co., Ltd.

Plant equipment

Related Products
